High wire resolution and steel penetration economic single view X-ray baggage scanner

High wire resolution and steel penetration economic single view X-ray baggage scanner
High wire resolution and steel penetration economic single view X-ray baggage scanner

Large Image :  High wire resolution and steel penetration economic single view X-ray baggage scanner

Product Details:
Place of Origin: Shenzhen
Brand Name: Uniqscan
Certification: CE;ISO
Model Number: SF5636
Payment & Shipping Terms:
Minimum Order Quantity: i unit
Price: negotiation
Packaging Details: wooden box
Delivery Time: in one week
Payment Terms: L/C, T/T, Western Union
Supply Ability: 1000 per each month
Detailed Product Description
Product Name: X-ray Baggage Scanner Application: Public Security
Certification: CE;ISO Warranty: 2 Years
Tunnel Size: 560(w)x360(h)mm Network: Option
High Light:

security x ray scanner

,

x ray security scanner

High wire resolution and steel penetration economic single view X-ray baggage scanner



High wire resolution and steel penetration economic single view X-ray baggage scanner 0

X-RAY generator
Orientation: Upward
Tube Current:0.4~0.7mA(adjustable)
Anode Voltage:80KV(adjustable)
Angle: 60°
Generator cooling/working periods:
Sealed oil bath with forced air/100%



Film Safety: For ISO 1600

Airport Baggage X Ray Machine Sf5636 Dual Energy Scanner Ce / Iso Certificated






Application:
Exhibition center, Electronic Factory, Bank, Prison, Government office,Hotel etc



Parameter
General specification X-ray Generator
Tunnel Size : 500(W)×300(H)mm Orientation: Upward;
Conveyor Speed: 0.22m/s Tube Current: 0.4~0.7MA(adjustable)
Conveyor Max Load: 100 kg Anode voltage: 80KV(adjustable)
Single inspection dosage:< 1.32μGy X-ray divergence angle: 60 °
Leakage radiation dosage:≤ 0.14µGy/h Generator cooling/working periods:
Wire resolution: 40AWG sealed oil bath with forced air/100%
Spatial resolution :1.0mm Horizontal ;1.0mm Vertical X-RAY Sensor:
Steel Penetration: 10mm steel plate L-shaped array detector, 24bit
Film safety: for ISO1600






Features
Single-Energy ,L-shaped array detector
apan HAMMATSU detector crystal , Detecting board from Deetee Finland.
IPC from Taiwan , Interroll Roller from German
High-resolution PHILIP 19 inch color LCD display
Four colors to distinguish organic , inorganic and dangerous material
Multiple functions: High/Low penetration display, Magnifier, Brightening/dimming,
Image enlarge, recurrence, restoration, storage, network






Our service
2 years warranty for free parts.
Free training in the factoty and on the video.
We have professional global team to solve your pronlem
We provide the HD images and video also can do in your brand(OEM)
We can fly to you local to help you finish installing and so on business.

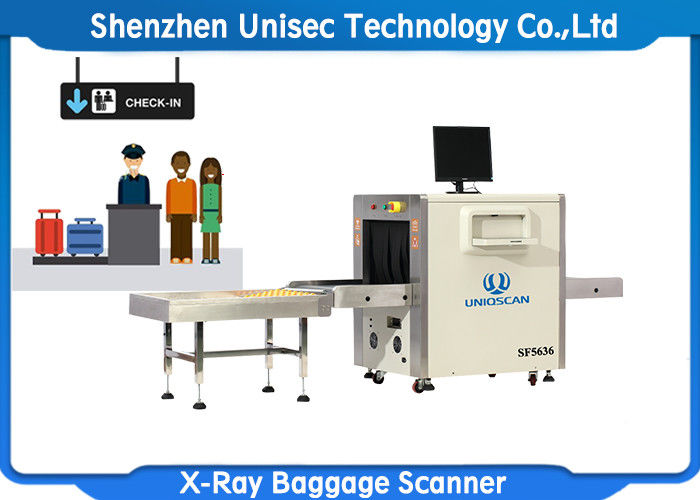

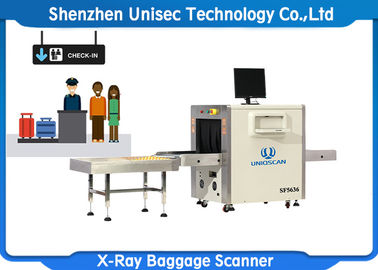

The image of SF5636

High wire resolution and steel penetration economic single view X-ray baggage scanner 1



High wire resolution and steel penetration economic single view X-ray baggage scanner 2







High wire resolution and steel penetration economic single view X-ray baggage scanner 3
