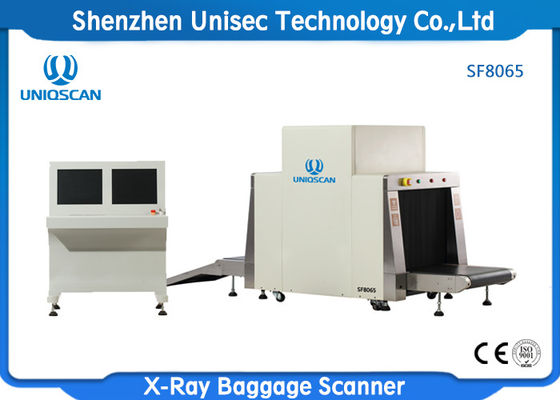

Dual Energy 40AWG Security Baggage Scanner X Ray Baggage Scanning Machine

China SHENZHEN UNISEC TECHNOLOGY CO.,LTD certification
China SHENZHEN UNISEC TECHNOLOGY CO.,LTD certification
Excellent! X RAY scanner be used on the airport, works very well and very stable !

—— Mr Anderson-USA

Good quality, good service! To cooperate with Uniqscan members is really happy thing!

—— Mr. Vijay-Saudi Arabia

It is my pleasure to have cooperation with UNIQSCAN,It is very stable used in the Hotal

—— Dr Mahammed-Bangeladesh

I can tell you are one of the best partners in China, because you are so professional in what you do, I can only praise your dedication and knowledge.

—— Mr stan -UK

I'm Online Chat Now

Dual Energy 40AWG Security Baggage Scanner X Ray Baggage Scanning Machine

large.img.alt
small.img.alt small.img.alt small.img.alt small.img.alt small.img.alt

Large Image :  Dual Energy 40AWG Security Baggage Scanner X Ray Baggage Scanning Machine

Product Details:
Place of Origin: CHINA
Brand Name: UNIQSCAN
Certification: CE ISO
Model Number: SF8065
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: negotiable
Packaging Details: wooden box package
Delivery Time: 15-20 working days after full payment
Payment Terms: T/T
Detailed Product Description
Product Name: X-ray Machine Conveyor Speed: 0.22m/s
Single Inspection Dosage: < 1.15μGy Steel Penetration: 38mm
Warranty: 2 Years Conveyor Max Load: 200 Kg
Wire Resolution: 40AWG
High Light:

40 AWG Security Baggage Scanner

,

200kg Security Baggage Scanner

,

200kg X Ray Baggage Scanning Machine

Dual Energy 40AWG Security Baggage Scanner X Ray Baggage Scanning Machine



General Specifications:

Tunnel Size : 800(W) ×650 (H) mm
Power Requirement: 220V AC (±10%) 50±3Hz
Power consumption: 1.0KW (Max)
Noise level: <60dB
Conveyor Speed: 0.22m/s
Conveyor Max Load: 200 kg
Wire Resolution: 40AWG
Spatial Resolution: 1.0mm Horizontal and Vertical
Steel Penetration: 38mm
Single inspection dosage: < 1.15μGy
Leakage radiation: <0.14µGy/h
Film Safety: Guarantee ISO1600 Film



X-Ray Generator Specifications:

Tube Current: 0.4~1.2mA
Anode Voltage: 100-160KV
Detector: L-shaped Array
Cooling: Sealed oil bath with forced air
Duty Cycle: Rated for 100%Duty Cycle
Beam Angle: 80°



Computer Specification:

Processor: E5800 Dual-core 3.2G 45nm.2M L2 CAHE,FSB 800MHZ
Memory: 2G DDR3 133MHZ 240PIN
Hard Disk : 500G

Dual Energy 40AWG Security Baggage Scanner X Ray Baggage Scanning Machine 0

Special features:
Network interface: Capable of connecting to LAN, and support multi-terminal check for baggage at same time
Safety ray: Ray is transmitted under automatic control, avoiding the error
One-key shutdown control: Just rotate the key to shut down the machine; it is safety, easy and convenient
Eagle eye: Capable of expediently observing the magnifying area
Self-diagnosis function: Give message automatically if malfunction for prompt maintenance

Detailed pictures

Dual Energy 40AWG Security Baggage Scanner X Ray Baggage Scanning Machine 1
