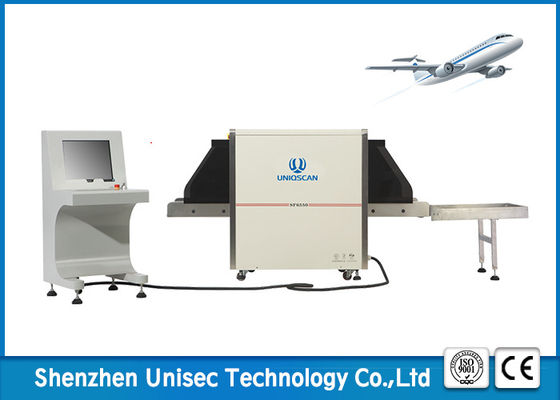

150KV Hotel Baggage X Ray Machine Parcel Bag Scanning Machine SF6550

150KV Hotel Baggage X Ray Machine Parcel Bag Scanning Machine SF6550
150KV Hotel Baggage X Ray Machine Parcel Bag Scanning Machine SF6550

Large Image :  150KV Hotel Baggage X Ray Machine Parcel Bag Scanning Machine SF6550

Product Details:

Place of Origin: CHINA
Brand Name: UNIQSCAN
Certification: CE ISO
Model Number: SF6550

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: negotiable
Packaging Details: wooden box package
Delivery Time: 15-20 working days after full payment
Payment Terms: T/T
Detailed Product Description
Product Name: X-ray Baggage Scanner Conveyor Speed: 0.22m/s
Single Inspection Dosage: < 1.32μGy Steel Penetration: 10mm
Warranty: 2 Years Wire Resolution:: 40AWG
Conveyor Max Load:: 100 Kg
High Light:

0.22m/s Baggage X Ray Machine

,

0.22m/s bag scanning machine

,

150KV Baggage X Ray Machine

150KV Hotel Baggage X Ray Machine Parcel bag scanning machine SF6550



General Specifications:

Tunnel Size : 650(W) ×500 (H) mm
Power Requirement: 220V AC (±10%) 50±3Hz
Power consumption: 1.0KW (Max)
Noise level: <80dB
Conveyor Speed: 0.22m/s
Conveyor Max Load: 150 kg
Wire Resolution: 40AWG
Spatial Resolution: 1.0mm Horizontal and Vertical
Steel Penetration: 32mm
Single inspection dosage: < 1.0μGy
Leakage radiation: <0.1µGy/h
Film Safety: Guarantee ISO1600 Film



X-Ray Generator Specifications:

Tube Current: 0.4~0.7mA
Anode Voltage: 150KV
Detector: L-shaped Array
Cooling: Sealed oil bath with forced air
Duty Cycle: Rated for 100%Duty Cycle
Beam Angle: 80°



Computer Specification:

Processor: E5800 Dual-core 3.2G 45nm.2M L2 CAHE,FSB 800MHZ
Memory: 2G DDR3 133MHZ 240PIN
Hard Disk : 500G

150KV Hotel Baggage X Ray Machine Parcel Bag Scanning Machine SF6550 0

Special features:
Network interface: Capable of connecting to LAN, and support multi-terminal check for baggage at same time
Safety ray: Ray is transmitted under automatic control, avoiding the error
One-key shutdown control: Just rotate the key to shut down the machine; it is safety, easy and convenient
Eagle eye: Capable of expediently observing the magnifying area
Self-diagnosis function: Give message automatically if malfunction for prompt maintenance

150KV Hotel Baggage X Ray Machine Parcel Bag Scanning Machine SF6550 1

150KV Hotel Baggage X Ray Machine Parcel Bag Scanning Machine SF6550 2
