Fire Proof Archway Metal Detector LCD Screen For Public Security Check

Security archway metal detector UZ700 with high sensitivity and LCD screen for public security check

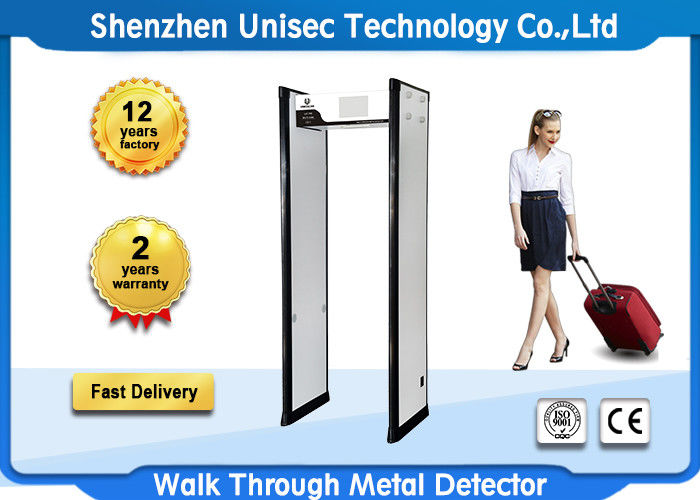

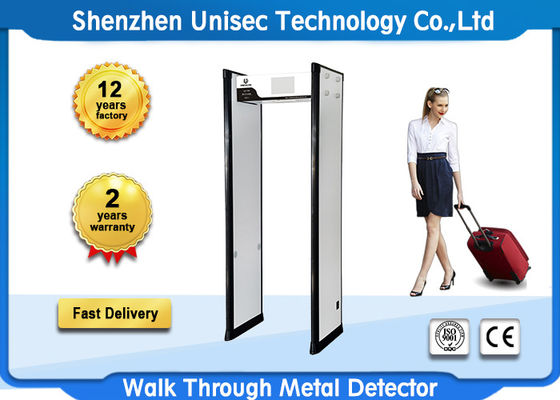

WALK THROUGH METAL DETECTOR

MODEL:UC700

8/16/24 zones

Parameters

Power Supply:AC85V-264V

Working temperature:-20℃--+50℃

Working Frequency :4KHZ—8KHZ

Waterproof can be used outside

Standard External size: 2230mm(H)X830mm(W)X730mm(D)

Standard Internal size: 2000mm(H)X700mm(W)X605mm(D)

Package size for door panels: 2260*750*260mm *1ctn

Package size for control unit: 780*390*250m*1ctn

Gross weight: 70KG

Characteristic & Function

• 8 / 16/ 24 detecting zones, Simultaneous alarm from multi- zones;
• Sensitivity adjustable: Each zone has 300 sensitivity level
• 7 inch LCD screen
• Infrared remote control
• Both English and Chinese Language
• Using high density fireproof material
• Anti-interference function,using advanced interactive transmitting and receiving to avoid interference.
• Sound & LED alarm: Two Sides LED indicator easily show where the metal is.
• Automatically count passengers and alarm times
• Password protection, only the authorized person can operate.
• Easy assembly: designed with only 2 pieces cables and 8 screws, Simply-to-follow instruction. Modularization design,easy for maintenance and replacement.
• Harmless to human body: is harmless with heart pacemaker, pregnant women, magnetic floppy, recording tapes, etc.
• Sensitivity Test piece: One yuan Coin, omnidirectional detection
• Network support (Option)
• 4-8 hours backup battery (Option)
