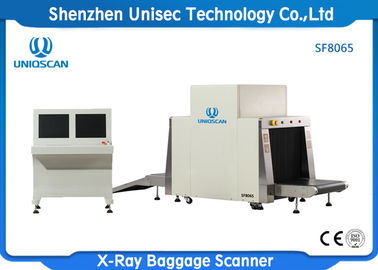

Dual LCD Screen Security Baggage Scanner 0.22m/S Conveyor Speed CE Approved

Model: SF8065

General Specifications

1. L-shaped array detector import from DeeTee Finland
2. 24 bit Multi-energy
3. Tunnel Size : 800(W)×650(H)mm
4. Power Requirement: 220V AC (±10%) 50±3Hz
5. Power consumption: 1.0KW (Max)
6. Noise level: <55dB
7. Conveyor Speed: 0.22m/s
8. Conveyor Max Load: 200 kg
9. Wire Resolution: 40AWG
10. Anode Voltage:100~160KV
11. Angle: 80°
12. Beam Direction: Downward
13. Steel Penetration: 38mm
14. 2*19 inch High-resolution color LCD display Can distinguish organic and inorganic
15. Single inspection dosage: < 1.15μGy
16. Leakage radiation: <0.14µGy/h

X-RAY GENERATOR

Orientation: Upward

Tube Current: 0.4-1.25mA(adjustable)

Anode Voltage: 80KV(adjustable)

Angle: 80°

Generator cooling/working periods:

Sealed oil bath with forced air/100％

OPERATING ENVIRONMENT

Storage Temperature: -20°C to 60°C

Operating Temperature: 0°C to 45°C

Relative Humidity:

20 to 95% non-condensing

System Power: 220 VAC (±10%) 50±3HZ

Power wastage: 1.0 KW (Max)

Noise<55DB

X-RAY Sensor: L-shaped array detector, 24bit

Image Performance System:

Display: High-resolution 2*19 inch color LCD display

Color quality: 24-Bit real colors based on materials

Edge enhancement: Object contour edge is more distinct

Super image enhancement: Image detail is more distinct

High penetration display: Increase the contrast of bright area in image to make the area that is easy to penetrate appear more clearly

Low penetration display: Increase the contrast of dark area in image to make the area that is difficult to penetrate appear more clearly.

Magnifier: Partial magnifying function

Brightening/dimming: Increase/Decrease brightness of image

Image recurrence: Display the previous twenty images and process any one of them

Image restoration: Restore image to initial status

Image storage: Real-time store any image and process it in operation status

Multi-energy: High/low energy: Switch from high energy to low energy

Color material identification: Organic objects in orange, inorganic objects in blue, mixture in green

Assist to detect drug and explosive powder

Special features:

Network interface: Capable of connecting to LAN, and support multi-terminal check for baggage at same time

Safety ray: Ray is transmitted under automatic control, avoiding the error

One-key shutdown control: Just rotate the key to shut down the machine; it is safety, easy and convenient

Eagle eye: Capable of expediently observing the magnifying area

Self-diagnosis function: Give message automatically if malfunction for prompt maintenance

Packaging & Shipping

Neutral Packing:
Q'TY: 1 PCS/Wooden Case
N.W.: 850 KGS
G.W.: 985 KGS

MEAS.: X-ray Scanner:200(L)*1210(W)*1960(H)
Console:14400(L)*1250(W)*710(H)
Wood Case Size:200(L)*1210(W)*1960(H)mm+14400(L)*1250(W)*710(H)mm=5.368CBM
