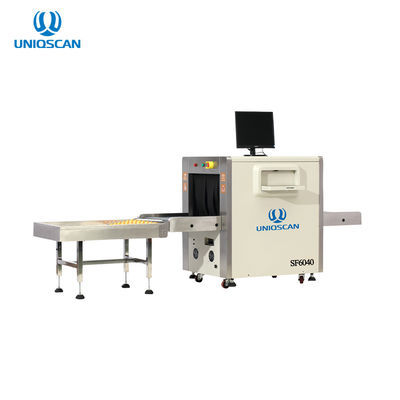

Single View Self Diagnosis Security X Ray Machine Airport Luggage Scanner

Single View Self Diagnosis Security X Ray Machine Airport Luggage Scanner
Single View Self Diagnosis Security X Ray Machine Airport Luggage Scanner Single View Self Diagnosis Security X Ray Machine Airport Luggage Scanner Single View Self Diagnosis Security X Ray Machine Airport Luggage Scanner Single View Self Diagnosis Security X Ray Machine Airport Luggage Scanner Single View Self Diagnosis Security X Ray Machine Airport Luggage Scanner Single View Self Diagnosis Security X Ray Machine Airport Luggage Scanner

Large Image :  Single View Self Diagnosis Security X Ray Machine Airport Luggage Scanner

Product Details:

Place of Origin: CHINA
Brand Name: UNIQSCAN
Certification: CE ISO
Model Number: SF6040

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: negotiable
Packaging Details: wooden box package
Delivery Time: 15 working days after full payment
Payment Terms: T/T
Detailed Product Description
Product Name: Factory Price Security Equipment X Ray Baggage Luggage Scanner Type: Security Products, Single Energy
Steel Penetration: 40mm Conveyor Speed: 0.22m/s
Spatial Resolution: 1.0mm Horizontal And Vertical Power Requirement: 220V AC (±10%) 50±3Hz
High Light:

Self diagnosis security x ray machine

,

220V security x ray machine

,

LCD display Airport Luggage Scanner

Single View Self Diagnosis Security X Ray Machine Airport Luggage Scanner

Advantage :
1. With equipment to save electricity
2. X-ray generator is from Beijing KV tech
3. Interroll from Germany
4. Receiver from DEETEE Finaland
5. Protective cover on lead curtain to avoid lead pollution;
6. Local network supported
7. One-key shutdown control
8. Self-diagnosis function
9. TIP and training software , free programmable keys , real time diagnostic



General Specifications:

Tunnel Size :
600 (W) ×400 (H) mm
Conveyor Speed:
0.22m/s
Conveyor Max Load:
150 kg
Single inspection dosage:
<1.0μG
Film Safety:
Guarantee ISO1600 Film
Leakage radiation:
<0.1µGy/h
Steel Penetration:
40mm
Wire Resolution:
40AWG
Spatial Resolution:
1.0mm Horizontal and Vertical
Power Requirement:
220V AC (±10%) 50±3Hz



X-RAY GENERATOR:

Tube Current:
0.7-1.2mA(adjustable)
Anode Voltage:
140-160KV(adjustable)
Angle:
80°
Generator cooling:
Sealed oil bath with forced air/100%



OPERATING ENVIRONMENT:

Storage Temperature:
-20℃ to 60℃
Operating Temperature:
0℃ to 45℃
Relative Humidity:
20 to 95% non-condensing
System Power:
220 VAC (±10%) 50±3HZ
Power wastage:
1.0 KW (Max)
Noise:
<55DB

Computer Specification:

Processor:
I3-4340 3.6 GHZ 22nm 54W
Memory:
4GDDR3 Loptop Memory
Hard Disk :
1T

X-RAY Sensor: L-shaped array detector, 24bit


Image Performance System:
1. Display: High-resolution 19 inch color LCD display
2. Color quality: 24-Bit real colors based on materials
3. Edge enhancement: Object contour edge is more distinct
4. Super image enhancement: Image detail is more distinct
5. High penetration display: Increase the contrast of bright area in image to make the area appear more clearly
6. Low penetration display: Increase the contrast of dark area in image to make the area appear more clearly.
7. Magnifier: Partial magnifying function
8. Brightening/dimming: Increase/Decrease brightness of image
9. Image recurrence: Display the previous twenty images and process any one of them
10. Image restoration: Restore image to initial status
11. Image storage: Real-time store any image and process it in operation status

Multi-energy: High/low energy: Switch from high energy to low energy
Color material identification: Organic objects in orange, inorganic objects in blue, mixture in green
Assist to detect drug and explosive powder
Special features:
1. Network interface: Capable of connecting to LAN, and support multi-terminal check for baggage at same time
2. Safety ray: Ray is transmitted under automatic control, avoiding the error
3. One-key shutdown control: Just rotate the key to shut down the machine; it is safety, easy and convenient
4. Eagle eye: Capable of expediently observing the magnifying area
5. Self-diagnosis function: Give message automatically if malfunction for prompt maintenance
6. TIP and training software , free programmable keys , real time diagnostic
7. Display date/time , baggage counter , User ID number
8. Review feature , recall previously image , zoom overview , step less zoom
