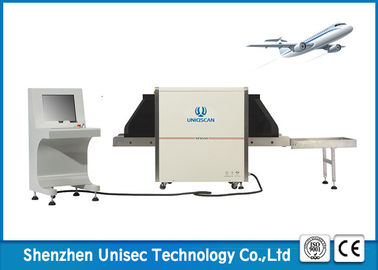

X - Ray Hand Security Baggage Scanner 0.22m / s Conveyor Speed With Color LCD Display

China SHENZHEN UNISEC TECHNOLOGY CO.,LTD certification
China SHENZHEN UNISEC TECHNOLOGY CO.,LTD certification
Excellent! X RAY scanner be used on the airport, works very well and very stable !

—— Mr Anderson-USA

Good quality, good service! To cooperate with Uniqscan members is really happy thing!

—— Mr. Vijay-Saudi Arabia

It is my pleasure to have cooperation with UNIQSCAN,It is very stable used in the Hotal

—— Dr Mahammed-Bangeladesh

I can tell you are one of the best partners in China, because you are so professional in what you do, I can only praise your dedication and knowledge.

—— Mr stan -UK

I'm Online Chat Now

X - Ray Hand Security Baggage Scanner 0.22m / s Conveyor Speed With Color LCD Display

X - Ray Hand Security Baggage Scanner 0.22m / s Conveyor Speed With Color LCD Display
X - Ray Hand Security Baggage Scanner 0.22m / s Conveyor Speed With Color LCD Display

Large Image :  X - Ray Hand Security Baggage Scanner 0.22m / s Conveyor Speed With Color LCD Display

Product Details:

Place of Origin: Guangdong, China
Brand Name: uniqscan
Certification: CE,ISO
Model Number: SF6550

Payment & Shipping Terms:

Minimum Order Quantity: 1 piece
Price: USD50000/pc
Packaging Details: Wooden case
Delivery Time: 7 working days after got the payment
Supply Ability: 300pcs/month
Detailed Product Description
Tunnel Size: 650 (W)*500(H)mm Conveyor Max Load: 170KG
Conveyor Speed: 0.22m/s Wire Resolution: 40AWG
Steel Penetration: 38mm Orientation: Upward
Warranty:: 2 Years Single Inspection Dosage:: < 1.32μGy
Storage Temperature:: -20oC To 60oC Weight: 665 KG/unit
High Light:

security x ray scanner

,

x ray security scanner

SF6550 high solution color LCD display X-Ray hand baggage scanner/ X-Ray security baggage scanner







1. General Specifications



Tunnel Size : 650 (W) ×500 (H) mm

Power Requirement: 220V AC (±10%)   50±3Hz

Power consumption:  1.0KW (Max)

Noise level:  <58dB

Conveyor Speed: 0.22m/s

Conveyor Max Load: 170 kg

Wire Resolution: 40AWG

Spatial Resolution: 1.0mm Horizontal and Vertical

Steel Penetration: 40mm

Single inspection dosage: < 1.2μGy

Leakage radiation: <0.1µGy/h

Film Safety: Guarantee ISO1600 Film

X-Ray Generator

Tube Current:0.4~1.2mA(adjustable)

Anode Voltage:100~160KV(adjustable)

Cooling: Sealed oil bath with forced air

Duty Cycle: Rated for 100%Duty Cycle

Beam Direction: Upward

Beam Angle: 80°

Detector: L-shaped Array

Environment Specifications:

Operating temperature/humidity: 0℃ ~ 45℃/20% ~ 95% (Non-condensing)

Storage temperature/humidity: -20℃ ~ 60℃/20% ~ 95% (Non-condensing)

Image Performance System:

19’’ High Resolution LCD Monitor

Display Resolution: 1280*1024;24 bit/pixel Color

Contrast Sensitivity: 24 Visible Levels, 4096 Gray Level

Image storage: 100,000 pictures in real time (can be customized)

Zoom: 64 Times Enlarge, Whole screen continuous observation

Multi-Energy (M) color material identification: Organic objects in orange color, inorganic objects in blue color, mixture in green color

Edge enhancement: Object contour edge is more distinct

Super image enhancement: Image detail is more distinct

High penetration display: Increase the contrast of bright area in image to make the area that is easy to penetrate appear more clearly

Low penetration display: Increase the contrast of dark area in image to make the area that is difficult to penetrate appear more clearly.

Brightening/dimming:       Increase/Decrease brightness of image

Image recurrence:              Display the previous twenty images and process any one of them

Image restoration:             Restore image to initial status

Assist to detect drug and explosive powder

Special features:

Network interface: Capable of connecting to LAN, and support multi-terminal check for baggage at same time

Safety ray: Ray is transmitted under automatic control, avoiding the error

One-key shutdown control: Just rotate the key to shut down the machine; it is safety, easy and convenient

Eagle eye: Capable of expediently observing the magnifying area

Self-diagnosis function: Give message automatically if malfunction for prompt maintenance.











2,Detailed parts





X - Ray Hand Security Baggage Scanner 0.22m / s Conveyor Speed With Color LCD Display 0











3,Scanned images





1















4,Successful cases



X - Ray Hand Security Baggage Scanner 0.22m / s Conveyor Speed With Color LCD Display 2







5,Package
