Application: | Public Security | Certifiation: | CE;ISO |
---|---|---|---|
Warranty: | 2 Years | Tunnel Size: | 800 (W) ×650 (H) Mm |
Conveyor Speed: | 0.22m/s | Conveyor Max Load: | 200 Kg |
Single Inspection Dosage: | < 1.15μGy | Leakage Radiation: | <0.14µGy/h |
Wire Resolution: | 40AWG | Steel Penetration: | 38mm |
Film Safety: | For ISO 1600 | ||
High Light: | x ray security equipment,x ray security scanner |

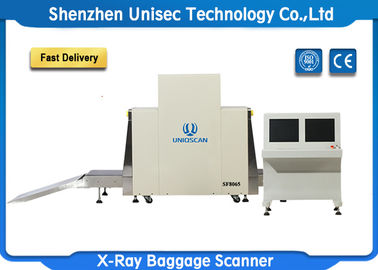

X Ray Large Baggage And Parcel Bag Checking Machine With High / Low Energy
X-RAY GENERATOR
Orientation: Downward
Tube Current:0.4~1.2mA(adjustable)
Anode Voltage:100~160KV(adjustable)
Angle: 80°
Generator cooling/working periods: Sealed oil bath with forced air/100%
OPERATING ENVIRONMENT
Storage Temperature: -20oC to 60oC
Operating Temperature:0oC to 45oC
Relative Humidity: 20 to 95% non-condensing
System Power: 220 VAC (±10%) 50±3HZ
Power wastage: 1.0 KW (Max)
Noise<55DB
X-RAY Sensor:
L-shaped array detector, 24bit
Image Performance System:
Display: High-resolution 19 inch color LCD display
Color quality: 24-Bit real colors based on materials
Edge enhancement: Object contour edge is more distinct
Super image enhancement: Image detail is more distinct
High penetration display: Increase the contrast of bright area in image to make the area that is easy to penetrate appear more clearly
Low penetration display: Increase the contrast of dark area in image to make the area that is difficult to penetrate appear more clearly.
Magnifier: Partial magnifying function
Brightening/dimming: Increase/Decrease brightness of image
Image recurrence: Display the previous twenty images and process any one of them
Image restoration: Restore image to initial status
Image storage: Real-time store any image and process it in operation status
Multi-energy: High/low energy: Switch from high energy to low energy
Color material identification: Organic objects in orange, inorganic objects in blue,
mixture in green
Assist to detect drug and explosive powder
Special features:
Network interface: Capable of connecting to LAN, and support multi-terminal check for baggage at same time
Safety ray: Ray is transmitted under automatic control, avoiding the error
One-key shutdown control: Just rotate the key to shut down the machine; it is safety, easy and convenient
Eagle eye: Capable of expediently observing the magnifying area
Self-diagnosis function: Give message automatically if malfunction for prompt maintenance
