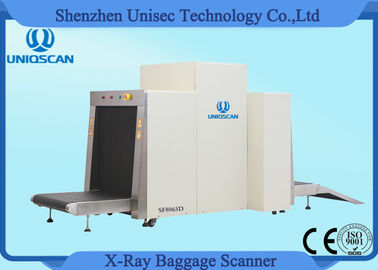

Big Size X-ray Scanner Dual View X-ray Systems For Inspecting Baggage / Cargo

large.img.alt
small.img.alt

Large Image :  Big Size X-ray Scanner Dual View X-ray Systems For Inspecting Baggage / Cargo

Product Details:
Place of Origin: CHINA
Brand Name: UNIQSCAN
Certification: CE , ISO
Model Number: SF8065D
Payment & Shipping Terms:
Minimum Order Quantity: 1 UNIT
Price: USD
Packaging Details: WOODEN BOX
Delivery Time: IN ONE WEEK
Payment Terms: T/T, Western Union
Supply Ability: 500 UNITS FOR ONE MONTH
Detailed Product Description
Product Name: Dual View X-Ray Baggage Scanners Tunnel Size: 800(W) X650 (H) Mm
Conveyor Max Load: 220kg Conveyor Speed: 0.22m/s
Noise Level: <55dB Anode Voltage: 140~160KV
Spatial Resolution: 1.0mm Horizontal And Vertical Steel Penetration: 40mm
High Light:

security x ray scanner

,

x ray security scanner



Big Size X-ray Scanner Dual View X-ray Systems For Inspecting Baggage and Cargo



Advantage :
1.With equipment to save electricity
2. X-ray generator is from Beijing KV tech
3. Interroll from Germany
4. Receiver from DEETEE Finaland
5. Protective cover on lead curtain to avoid lead pollution;
6. Local network supported
7. One-key shutdown control
8. Self-diagnosis function
9. TIP and training software , free programmable keys , real time diagnostic


General Specification:

Tunnel Size : 800 (W) ×650 (H) mm
Power Requirement: 220V AC (±10%) 50±3Hz
Power consumption: 1.0KW (Max)
Noise level: <55dB
Conveyor Speed: 0.22m/s
Conveyor Max Load: 220kg
Wire Resolution: 38AWG
Spatial Resolution: 1.0mm Horizontal and Vertical
Steel Penetration: 40mm
Single inspection dosage: < 1.2μGy
Leakage radiation: <0.1µGy/h
Film Safety: Guarantee ISO1600 Film


X-Ray Generator Specifications:

Tube Current: 0.7~1.2mA
Anode Voltage: 140~160KV
Cooling: Sealed oil bath with forced air
Duty Cycle: Rated for 100%Duty Cycle
Beam Direction: Downward and Sideward
Beam Angle: 80°
Detector: L-shaped Array * 2


Environment Specifications:

Operating temperature/humidity: 0ºC ~ 45ºC/20% ~ 95% (Non-condensing)
Storage temperature/humidity: -20ºC ~ 60ºC/20% ~ 95% (Non-condensing)


Computer Specification:

Processor: I3-4340 (Dual core four thread) 3.6 GHZ 22nm 54W
Memory: 4GDDR3 Loptop Memory
Hard Disk : 1T


Image Display:
1. 19'' High Resolution LCD Monitor *2
2. Display Resolution: 1280*1024;24 bit/pixel Color
3. Contrast Sensitivity: 24 Visible Levels, 4096 Gray Level
4. Image storage: 100,000 pictures in real time (can be customized)
5. Zoom: 64 Times Enlarge, Whole screen continuous observation
6. Multi-Energy (M) color material identification: Organic objects in orange color, inorganic objects in blue color, mixture in green color
7. Edge enhancement: Object contour edge is more distinct
8. Super image enhancement: Image detail is more distinct
9. High penetration display: Increase the contrast of bright area in image to make the area that is easy to penetrate appear more clearly
10. Low penetration display: Increase the contrast of dark area in image to make the area that is difficult to penetrate appear more clearly.
11. Brightening/dimming: Increase/Decrease brightness of image
12. Image recurrence: Display the previous twenty images and process any one of them
13. Image restoration: Restore image to initial status
14.Assist to detect drug and explosive powder


 UNIQSCAN Five start hotel project:

Big Size X-ray Scanner Dual View X-ray Systems For Inspecting Baggage / Cargo 0
