| Product Name: | Baggage Parcel Inspection | Tunnel Size: | 1000 (W) ×800 (H) Mm |
|---|---|---|---|
| Conveyor Max Load: | 230 Kg | Single Inspection Dosage: | < 1.15μGy |
| Wire Resolution: | 38AWG | Beam Angle: | 80° |
| Tube Current: | 0.4~0.7mA | Anode Voltage: | 140~160KV |
| High Light: | x ray security equipment,x ray security scanner |
||

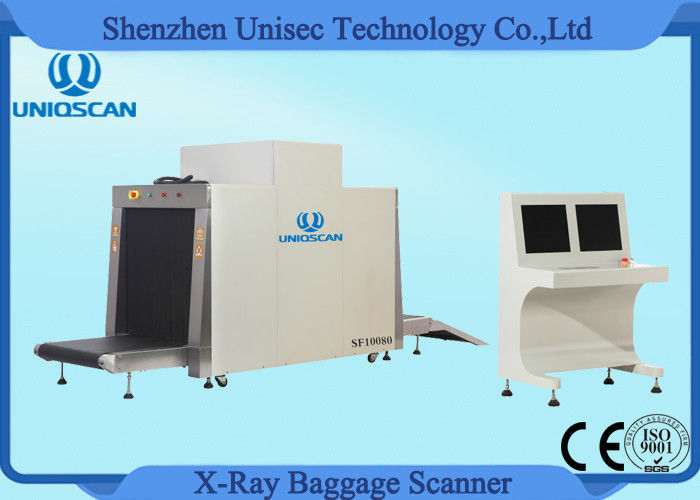

X Ray Scanner SF10080 Dual Energy Baggage parcel inspection for Hotel Security
Product Point:
1...........................L-shaped array detector, 24bit , Dual Energy
2..........................Tunnel Size : 1000 (W) ×800 (H) mm
3..........................Steel Penetration: 38mm
4..........................Leakage radiation: <0.2µGy/h
5..........................Single inspection dosage: <1.5μGy
General Specifications:
| Tunnel Size : | 1000 (W) ×800 (H) mm |
| Conveyor Speed: | 0.22m/s |
| Conveyor Max Load: | 230 kg |
| Single inspection dosage: | <1.5μGy |
| Leakage radiation: | <0.2µGy/h |
| Wire Resolution: | 38AWG |
| Steel Penetration: | 38mm |
| Film Safety: | For ISO 1600 |
X-RAY GENERATOR:
| Orientation: | downward |
| Tube Current: | 0.4-0.7mA(adjustable) |
| Anode Voltage: | 100-160KV(adjustable) |
| Angle: | 80° |
| Generator cooling/working periods: | Sealed oil bath with forced air/100% |
OPERATING ENVIRONMENT:
| Storage Temperature: | -20℃ to 60℃ |
| Operating Temperature: | 0℃ to 45℃ |
| Relative Humidity: | 20 to 95% non-condensing |
| System Power: | 220 VAC (±10%) 50±3HZ |
| Power wastage: | 1.0 KW (Max) |
| Noise | <58DB |
Computer Specification:
| Processor: | I3-4340 (Dual core four thread) 3.6 GHZ 22nm 54W |
| Memory: | 4GDDR3 Loptop Memory |
| Hard Disk : | 1T |
X-RAY Sensor: L-shaped array detector, 24bit , Dual energy
Image Performance System:
1. Display: High-resolution 19 inch color LCD display
2. Color quality: 24-Bit real colors based on materials
3. Edge enhancement: Object contour edge is more distinct
4. Super image enhancement: Image detail is more distinct
5. High penetration display: Increase the contrast of bright area in image to make the area that is easy to penetrate appear more clearly
6. Low penetration display: Increase the contrast of dark area in image to make the area that is difficult to penetrate appear more clearly.
7. Magnifier: Partial magnifying function
8. Brightening/dimming: Increase/Decrease brightness of image
9. Image recurrence: Display the previous twenty images and process any one of them
10. Image restoration: Restore image to initial status
11. Image storage: Real-time store any image and process it in operation status
Multi-energy: High/low energy: Switch from high energy to low energy
Color material identification: Organic objects in orange, inorganic objects in blue, mixture in green
Assist to detect drug and explosive powder
Special features:
1. Network interface: Capable of connecting to LAN, and support multi-terminal check for baggage at same time
2. Safety ray: Ray is transmitted under automatic control, avoiding the error
3. One-key shutdown control: Just rotate the key to shut down the machine; it is safety, easy and convenient
4. Eagle eye: Capable of expediently observing the magnifying area
5. Self-diagnosis function: Give message automatically if malfunction for prompt maintenance
6. TIP and training software , free programmable keys , real time diagnostic
7. Display date/time , baggage counter , User ID number
8. Review feature , recall previously image , zoom overview , step less zoom
Size:
