Product Details:
Payment & Shipping Terms:
|
| Place Of Origin::: | Guangdong, China (Mainland) | Warranty::: | 2 Years |
|---|---|---|---|
| Conveyor Max Load::: | 100 Kg | Film Safety::: | For ISO 1600 |
| Conveyor Speed::: | 0.22m/s | Brand Name::: | UNIQSCAN |
| Steel Penetration::: | 10mm | Wire Resolution::: | 40AWG |
| Storage Temperature::: | -20oC To 60oC | Model Number:: | SF5030 |
| High Light: | security x ray scanner,x ray security scanner |
||

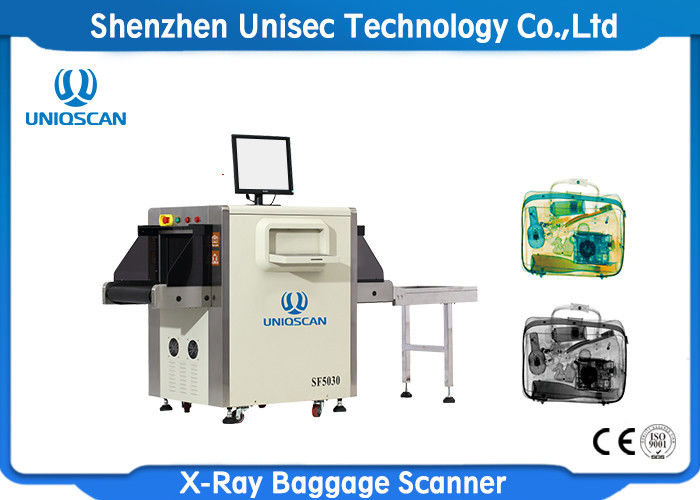

x-ray baggage scanner/xray luggage scanner with high penetration used in hotel,bank ect
Company information
ABOUT US
Shenzhen Unisec Technology Co., Ltd is a professional security scanner equipment manufacturer, specialized the development and research in the x-ray imagine tehnology, metal detection technology, explosive detection, liquid detection and relative security services.
OUR BRIEF
We always adhere to customer-centric, the principles of honesty and trustworthiness, is committed to efforts to improve and continuous innovate its own responsibility .
OUR TECHNOLOGY
We owns all of the intellectual property rights (IPR) to its core technologies ,and have a experience engineer team with senior x-ray detection exports, signal and imagine processing specialist , excellent technical support and maintance engineers.
OUR SERVICES
We strictly in accordance with the ISO9001 quality standard requirements from production research , manufacture, marketing to after services, established a complete quality management and assurance system . Also we take effective marketing management protection measures to control the products qulity ,working efficiency and service attitudes ,to ensure all our clients have our best quality products and best services.
Detaild info for the parts
Specification
General Specifications
Tunnel Size : 500 (W) ×300 (H) mm
Conveyor Speed: 0.22m/s
Conveyor Max Load: 100 kg
Single inspection dosage: < 1.32μGy
Wire Resolution: 40AWG
Steel Penetration: 10mm
Film Safety: For ISO 1600
X-RAY GENERATOR
Orientation: Upward
Tube Current:0.4~0.7mA(adjustable)
Anode Voltage:80KV(adjustable)
Angle: 60°
Generator cooling/working periods:
Sealed oil bath with forced air/100%
OPERATING ENVIRONMENT
Storage Temperature: -20oC to 60oC
Operating Temperature: 0oC to 45oC
Relative Humidity:
20 to 95% non-condensing
System Power: 220 VAC (±10%) 50±3HZ
Power wastage: 1.0 KW (Max)
Noise<65DB
X-RAY Sensor:
L-shaped array detector
24bit
Single energy
Image Performance System:
Display: High-resolution 19 inch color LCD display
Color quality: 24-Bit real colors based on materials
Edge enhancement: Object contour edge is more distinct
Super image enhancement: Image detail is more distinct
High penetration display: Increase the contrast of bright area in image to make the area that is easy to penetrate appear more clearly
Low penetration display: Increase the contrast of dark area in image to make the area that is difficult to penetrate appear more clearly.
Magnifier: Partial magnifying function
Brightening/dimming: Increase/Decrease brightness of image
Image recurrence: Display the previous twenty images and process any one of them
Image restoration: Restore image to initial status
Image storage: Real-time store any image and process it in operation status
Special features:
Network interface: Capable of connecting to LAN, and support multi-terminal check for baggage at same time
Safety ray: Ray is transmitted under automatic control, avoiding the error
One-key shutdown control: Just rotate the key to shut down the machine; it is safety, easy and convenient
Eagle eye: Capable of expediently observing the magnifying area
Self-diagnosis function: Give message automatically if malfunction for prompt maintenance
Scanned images
