Product Details:
Payment & Shipping Terms:
|
| Application: | Public Security | Certification: | CE:ISO |
|---|---|---|---|
| Model: | SF5636 | Conveyor Speed: | 0.22m/s |
| Tunnel Size: | 500(w)x300(h)mm | Wire Resolution: | 40AWG |
| Warranty: | 2 Years | ||
| Highlight: | security x ray scanner,x ray security scanner |
||
Film Safety: For ISO 1600
Airport Baggage X Ray Machine Sf5636 Dual Energy Scanner Ce / Iso Certificated
Application:
Exhibition center, Electronic Factory, Bank, Prison, Government office,Hotel etc
| Parameter | |||
| General specification | X-ray Generator | ||
| Tunnel Size : 500(W)×300(H)mm | Orientation: Upward; | ||
| Conveyor Speed: 0.22m/s | Tube Current: 0.4~0.7MA(adjustable) | ||
| Conveyor Max Load: 100 kg | Anode voltage: 80KV(adjustable) | ||
| Single inspection dosage:< 1.32μGy | X-ray divergence angle: 60 ° | ||
| Leakage radiation dosage:≤ 0.14µGy/h | Generator cooling/working periods: | ||
| Wire resolution: 40AWG | sealed oil bath with forced air/100% | ||
| Spatial resolution :1.0mm Horizontal ;1.0mm Vertical | X-RAY Sensor: | ||
| Steel Penetration: 10mm steel plate | L-shaped array detector, 24bit | ||
| Film safety: for ISO1600 | |||
| Features |
| Single-Energy ,L-shaped array detector |
| apan HAMMATSU detector crystal , Detecting board from Deetee Finland. |
| IPC from Taiwan , Interroll Roller from German |
| High-resolution PHILIP 19 inch color LCD display |
| Four colors to distinguish organic , inorganic and dangerous material |
| Multiple functions: High/Low penetration display, Magnifier, Brightening/dimming, |
| Image enlarge, recurrence, restoration, storage, network |
Our service
2 years warranty for free parts.
Free training in the factoty and on the video.
We have professional global team to solve your pronlem
We provide the HD images and video also can do in your brand(OEM)
We can fly to you local to help you finish installing and so on business.

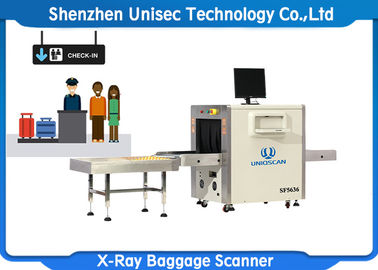

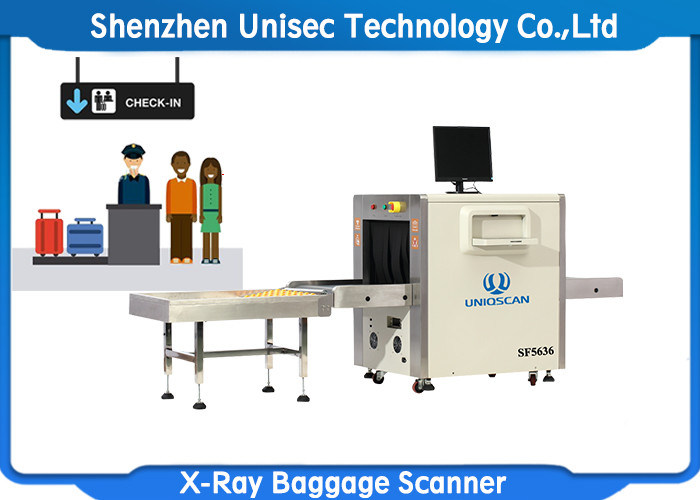

The image of SF5636
