|Tunnel Size:||1000(w)x1000(h)mm||Beam Direction:||Downward And Sideward|
|Conveyor Speed:||0.22m/s||Wire Resolution:||40AWG|
security x ray scanner,
x ray security scanner

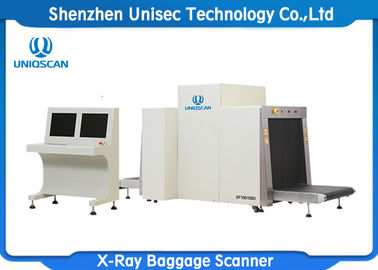

Security Check X Ray Baggage Scanner Machine For Airport And Metro Station
Dual view x-ray baggage scanner SF100100D for airport and metro station security check from Uniqscan
X-Ray Generator Specifications
Grey level optimization, live pseudo-color, humanization design
Ele-shooting, multiframe superposition, easy and fast.
Positive and negative image show with adjusted edge.
Dynamic memory, print, DVD reader etc output mode
Soldered ball measuring technique
Cooling/work cycle: Sealed oil cooling/100%
Wire Resolution: 0.1mm metal line
Steel Penetration: 32MM armor plate
Film Safety: For ISO 1600
Maximum leakage radiation: <0.2µGY/H
|Passageway Size||1000(W)*1000(H) mm|
|Penetration||mm Steel plate|
|Belt Max Load:||200Kg|
|Dose per inspection:||<2Gy/h|
|Film Safety||Guarantee ISO1600 Film|
|Ray beam spread angle||80 degree|
|Cooling/work Cycle||Sealed Oil Cooling /100%|
|Multi-energy/Distinguish objects||organic objects in orange,inorganic objects in blue,mixture in green|
|Belt speed||0.22m/s (adjustable)|
|Display||HD 19’’LCD display|
|High-energy/low energe||Two kinds of energyswitch display|
|Image restoration||Image display restore the origional status|
a Alarm by sounds & light::Alarm by sounds and light when conform to condition.
b Network interface:Could be connect local area network and support multi-terminal check baggage at same times
c Safety ray:Transmit ray under automatic control, avoids the miss
d Image monitoring for user-friendly:The monitor use fold, rotary system, operators d adjusts the monitor position willfully according to own need, reduces wearily.
e big size screen display, 24 inch medical screen display, provides focus image, exact-observation and easy to tell images, also can be full image.
f keyboard and mouse control
g Be with Industrial computer system, and Windows operation.
h Flexible combination: CT scanning, Intensifier, panel can be chose.
a 2* 19’’ High Resolution LCD Monitor
b Display Resolution: 1280*1024;24 bit/pixel Color, dual view image
c Contrast Sensitivity: 24 Visible Levels,4096 Gray Level
d Image storage: 100,000 pictures in real time (can be customized)
e Zoom: 64 Times Enlarge, Whole screen continuous observation
f Multi-Energy (M) color material identification: Organic objects in orange color, inorganic objects in blue color, mixture in green color
g Threat image projection (TIP), assist to detect drug and explosive powder
h Grey level optimization, live pseudo-color, humanization design
i Ele-shooting, multiframe superposition, easy and fast.
j. Positive and negative image show with adjusted edge.
k. Dynamic memory, print, DVD reader etc output mode
l. soldered ballmeasuring technique
1)TIP function: to check if the operation work carefully and find out the Dangerous article as setting. The function can be open or close as requirement.
2) The scanning pictures can be zoom in, zoomout and moved around as you like. What’s more the pictures are in JPG format, can copy to any where to check.
3)Automatic start-stop motor control, when there is baggage on conveyor, it will run, while none, it will stop.
