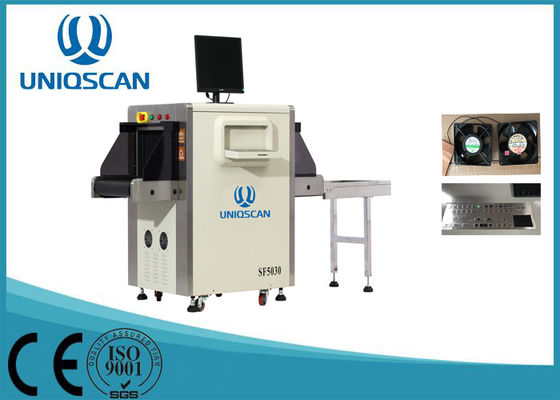

L Shaped Array Detector X Ray Baggage Inspection System SF5030A Bag Scanner Machine

L Shaped Array Detector X Ray Baggage Inspection System SF5030A Bag Scanner Machine
L Shaped Array Detector X Ray Baggage Inspection System SF5030A Bag Scanner Machine L Shaped Array Detector X Ray Baggage Inspection System SF5030A Bag Scanner Machine

Large Image :  L Shaped Array Detector X Ray Baggage Inspection System SF5030A Bag Scanner Machine

Product Details:
Place of Origin: China
Brand Name: Uniqscan
Certification: CE ISO
Model Number: SF5030A
Payment & Shipping Terms:
Minimum Order Quantity: 1 UNIT
Price: Negotiation
Packaging Details: Wooden box
Delivery Time: in one week
Payment Terms: T/T
Detailed Product Description
Product Name: X Ray Security Equipment Conveyor Speed: 0.22m/s
Conveyor Max Load: 100 Kg Single Inspection Dosage: < 1.32μGy
Wire Resolution: 40AWG Warranty: 2 Years
Certification: CE, ISO Orientation: Upward
High Light:

security x ray scanner

,

x ray security scanner

L-shaped array detector / Security baggage scanner SF5030A



Tunnel Size: 500mm×300mm
Conveyor Speed: 0.22m/s
Conveyor height : 670mm
Conveyor Max Load: 100kg
X ray Dose per inspection <0.5uGy
Wire Resolution: 38AWG Guarantee 40 AWG typical
Spatial resolution Level: dia1.0mm,Vertical: dia1.0mm
Penetration: 10 mm steel
Penetration Resolution : 32AWG ,the wire visible below 22mm thick aluminum
Film Safety : Guarantee ASA/ISO1600 Film
X-ray Leakage: <0.5 μGVy/h (at a distance of 5cm From external housing)






Other Characters optional



1 Computer system: XP system or windows 7

2 UPS camera system and photographic system Optional
3 Support card reader operator access (optional)
4 CD DVR/RW unit: Optional
5 Extension Rollers: Optional (50cm length roller)
6 Monitor optional: 17 inch DELL brand or 19inch monitor



Installation Data

  • 1. Operating Temperature/Humidity: 0℃~45℃/20%-95%(non-condensing)
  • 2. Storage Temperature/Humidity: -26℃~60℃/20%-95%(non-condensing)
  • 3. Operation Power:220AVC/(±10)50Hz±3Hz
  • 4. Power Consumption:1.0KW(Max)
  • 5. Noise: <58 dB



Fatory Pictures:





L Shaped Array Detector X Ray Baggage Inspection System SF5030A Bag Scanner Machine 0
