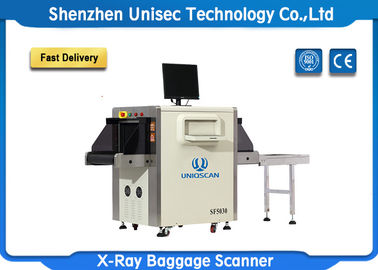

High Penetration Security Baggage Scanner For Airport Check and supermaket security check

China SHENZHEN UNISEC TECHNOLOGY CO.,LTD certification
China SHENZHEN UNISEC TECHNOLOGY CO.,LTD certification
Excellent! X RAY scanner be used on the airport, works very well and very stable !

—— Mr Anderson-USA

Good quality, good service! To cooperate with Uniqscan members is really happy thing!

—— Mr. Vijay-Saudi Arabia

It is my pleasure to have cooperation with UNIQSCAN,It is very stable used in the Hotal

—— Dr Mahammed-Bangeladesh

I can tell you are one of the best partners in China, because you are so professional in what you do, I can only praise your dedication and knowledge.

—— Mr stan -UK

I'm Online Chat Now

High Penetration Security Baggage Scanner For Airport Check and supermaket security check

High Penetration Security Baggage Scanner For Airport Check and supermaket security check
High Penetration Security Baggage Scanner For Airport Check and supermaket security check

Large Image :  High Penetration Security Baggage Scanner For Airport Check and supermaket security check

Product Details:
Place of Origin: Shenzhen
Brand Name: Uniqscan
Certification: CE;ISO
Model Number: SF5030A
Payment & Shipping Terms:
Minimum Order Quantity: 1 pcs
Price: negotiation
Packaging Details: weeden case
Delivery Time: 5 work days
Payment Terms: L/C, T/T, , Western Union
Supply Ability: 500pcs each month
Detailed Product Description
Tunnel Size: 500 (W) ×300 (H) Mm Conveyor Speed: 0.22m/s
Conveyor Max Load: 100 Kg Single Inspection Dosage: < 1.32μGy
Wire Resolution: 40AWG Steel Penetration: 10mm
Film Safety: For ISO 1600
High Light:

x ray security equipment

,

x ray security scanner

High Penetration Security Baggage Scanner For Airport Check , Cargo Security Scanning Machine







Model: SF5030A

General Specifications

Tunnel Size : 500 (W) ×300 (H) mm

Conveyor Speed: 0.22m/s

Conveyor Max Load: 100 kg

Single inspection dosage: < 1.32μGy

Wire Resolution: 40AWG

Steel Penetration: 10mm

Film Safety: For ISO 1600



X-RAY GENERATOR

Orientation: Upward

Tube Current:0.4~0.7mA(adjustable)

Anode Voltage:80KV

Angle: 60°

Generator cooling/working periods:

Sealed oil bath with forced air/100%

OPERATING ENVIRONMENT

Storage Temperature: -20oC to 60oC

Operating Temperature: 0oC to 45oC

Relative Humidity:

20 to 95% non-condensing

System Power: 220 VAC (±10%) 50±3HZ

Power wastage: 1.0 KW (Max)

Noise<65DB

X-RAY Sensor:

L-shaped array detector

24bit

Single energy

Image Performance System:

Display: High-resolution 19 inch color LCD display

Color quality: 24-Bit real colors based on materials

Edge enhancement: Object contour edge is more distinct

Super image enhancement: Image detail is more distinct

High penetration display: Increase the contrast of bright area in image to make the area that is easy to penetrate appear more clearly

Low penetration display: Increase the contrast of dark area in image to make the area that is difficult to penetrate appear more clearly.

Magnifier: Partial magnifying function

Brightening/dimming: Increase/Decrease brightness of image

Image recurrence: Display the previous twenty images and process any one of them

Image restoration: Restore image to initial status

Image storage: Real-time store any image and process it in operation status



Special features:

Network interface: Capable of connecting to LAN, and support multi-terminal check for baggage at same time

Safety ray: Ray is transmitted under automatic control, avoiding the error

One-key shutdown control: Just rotate the key to shut down the machine; it is safety, easy and convenient

Eagle eye: Capable of expediently observing the magnifying area

Self-diagnosis function: Give message automatically if malfunction for prompt maintenance
