Product Name: | X Ray Security Screening System | Conveyor Speed: | 0.22m/s |
---|---|---|---|
Conveyor Max Load: | 100 Kg | Single Inspection Dosage: | < 1.32μGy |
Wire Resolution: | 40AWG | Warranty: | 2 Years |
Certification: | CE, ISO | Orientation: | Upward |
Highlight: | security x ray scanner,x ray security scanner |

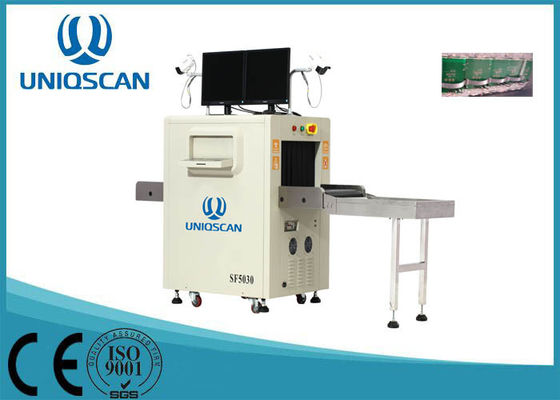

43mm Steel Penetration / Dual energy Security baggage scanner SF5030C
General Specifications
Tunnel Size : 500 (W) ×300 (H) mm
Conveyor Speed: 0.22m/s
Conveyor Max Load: 120 kg
Single inspection dosage: < 1.32μGy
Wire Resolution: 40AWG (0.0787mm metal line)
Steel Penetration: 43mm
Film Safety: For ISO 1600
X-RAY GENERATOR
Orientation: Upward
Tube Current:0.4~1.2mA(adjustable)
Anode Voltage:100~160KV(adjustable)
Angle: 80°
Generator cooling/working periods:
Sealed oil bath with forced air/100%
OPERATING ENVIRONMENT
Storage Temperature: -20oC to 60oC
Operating Temperature: 0oC to 45oC
Relative Humidity: 20 to 95% non-condensing
System Power: 220 VAC (±10%) 50±3HZ
Power wastage: 1.0 KW (Max)
Noise<65DB
X-RAY Sensor: L-shaped array detector, 24bit,Dual energy
X-RAY Sensor: L-shaped array detector, 24bit,Dual energy
Applications:
Competitive Advantage:
Fatory Pictures:
