18 Mutual Over - Lapping Pass Through Metal Detector PAL / NTSC Signal Format

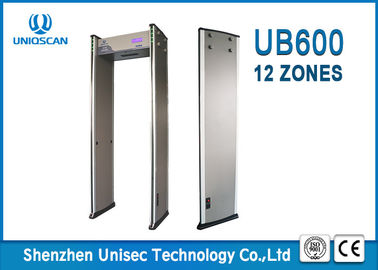

18 mutual over-lapping detecting zones, Simultaneous alarm from multi- zones walk through metal detector UB600

6/12/18 zones

Parameters

Power Supply:AC85V-264V

Working temperature:-20℃--+50℃

Working Frequency :4KHZ—8KHZ

Standard External size: 2200mm(H)X800mm(W)X580mm(D)

Standard Internal size: 2010mm(H)X700mm(W)X500mm(D)

Package size for door panels: 2290*560*180mm *1ctn

Package size for control unit: 760*380*260 mm*1ctn

Gross weight: 63KG

Characteristic & Function

• 18 mutual over-lapping detecting zones, Simultaneous alarm from multi- zones;
• Small LCD screen, English operating software, easy to operate.
• Sensitivity adjustable: Each zone has 256 sensitivity level, 0-255 adjustable
• Sound & LED alarm: Both Side LED indicator ,

easily show where the metal is.

• Automatically count passengers and alarm times
• Alarm strength indicator on control panel
• Password protection, only the authorized person can operate.
• Easy assembly: designed with only 2 pieces cables and 8 screws, simply-to-follow instruction.
• Harmless to human body: is harmless with heart pacemaker, pregnant women, magnetic floppy, recording tapes, etc.
• Using high density fireproof material
• Program Self-diagnostic when power on,no need initial or periodic calibration
• Modularization design,easy for maintenance and replacement.
• Sensitivity Test piece: One yuan Coin, omnidirectional detection
• 4-8 hours backup battery (Option)

Application

Exhibition center, Electronic Factory, Bank, Prison, Government office,Hotel etc
