Product Details:
Payment & Shipping Terms:
|
| Product Name: | Walk Through Body Scanner Gate | Material: | High Density Wood |
|---|---|---|---|
| Warranty: | 2 Years | Power Supply: | AC85V-264V |
| Sensitivity: | 0-99 Adjustable Level | Weight: | 65KG |
| Feature: | CCTV Cameras | Zone: | 6 Detecting Zones |
| Working Temperature: | -20℃--+50℃ | ||
| High Light: | 100 Sensitivity Body Inspection Door Frame,7" LCD Archway Metal Detector |
||

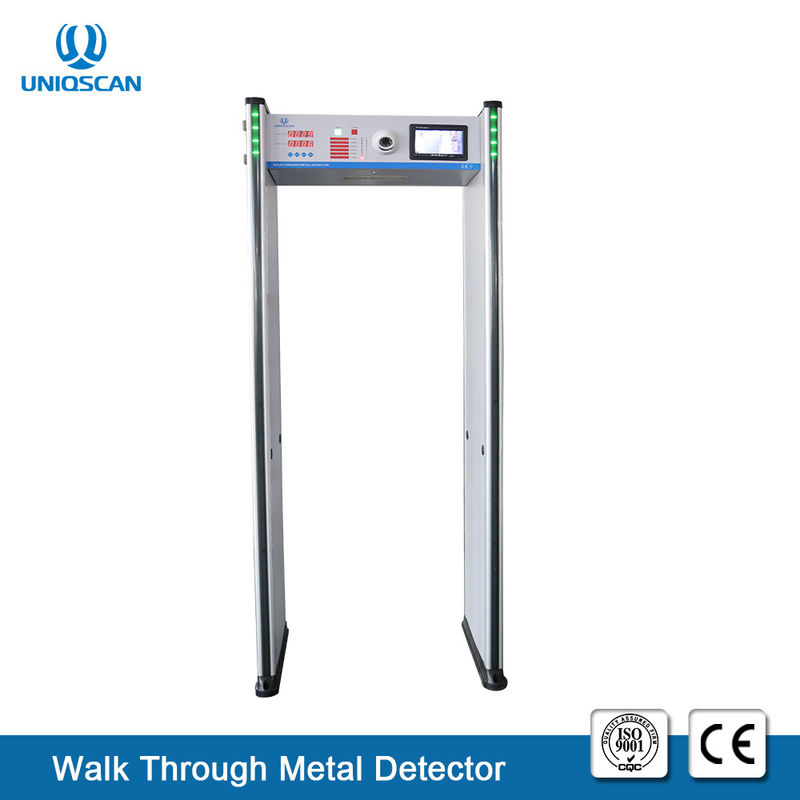

CCTV Camera Monitor Walk Through Security Body Inspection Door Frame Archway Metal Detector rGate 6 Detecting Zone
Product Point :
>> 6 detecting zones with full body outlay display
>> Each zone has 100 sensitivity level
>> 7" LCD colored screen for CCTV Camera
>> 2 adjustable infrared cameras , one for entry , one for exit
>> 4 hour inner backup battery
>> If any interesting , let me know , I will send detail video for your reference
Specification of Camera and DVR :
Camera: 2 adjustable infrared cameras , one for entry , one for exit
Video Input : 2 channel
Video output : 1 channel
USB slot
SD card slot
Screen: 7" LCD colored with IR remote control
Resolution : 1280*720
Audio input : 2 channel Audio output: 1 channel
Working mode : video and recording mode-auto/manual
Mermory : support 128G removable sd card Power consumption : 5-30V
Language : English/Chinese
DVR Size : 2.6''x 3.5'' in die cast aluminium body
Remote controller IR for control of complete menu on screen display
Specification of Camera:
Resolution : 800 line CCD
IR bulbs for night viewing with infre red sensor
Camera mounted on control box front and back with tilt mounting
Parameters :
| Detecting zone: | 6 zone |
| Display way: | 5 digital LED count |
| Sensitivity: | 0-100 adjustable |
| Power Supply: | AC85V-264V |
| Working temperature: | -20ºC--+50ºC |
| Working Frequency: | 4KHZ-8KHZ |
| Gross weight: | 70KG |
| Warranty: | 2 years |
| Standard External size: | 2200mm(H)X800mm(W)X580mm(D) |
| Standard Internal size: | 2010mm(H)X700mm(W)X500mm(D) |
| Package size for door panels: | 2260*650*260mm *1ctn |
| Package size for control unit: | 780*390*250 mm*1ctn |
Characteristic & Function :
Applications:
We has been supplying quality products worldwide for over 40 countries, 10 years, with wide product line consists of 4 groups, includes:
Detail Photo :
Shipment:
| Payment terms | T/T, Western Union, Cash,L/C |
| Shipping methods | By air (5-7days, most expensive) |
| By express (3-7days, more expensive) | |
| By sea (15-28days, cheapest) |
About Us:
Shenzhen Unisec Technology Co., Ltd is a professional security scanner equipment manufacturer, specialized the development and research in the x-ray imagine tehnology, metal detection technology, explosive detection, liquid detection and relative security services.
OUR BRIEF
We always adhere to customer-centric, the principles of honesty and trustworthiness, is committed to efforts to improve and continuous innovate its own responsibility .
OUR TECHNOLOGY
We owns all of the intellectual property rights (IPR) to its core technologies ,and have a experience engineer team with senior x-ray detection exports, signal and imagine processing specialist , excellent technical support and maintance engineers.
OUR SERVICES
We strictly in accordance with the ISO9001 quality standard requirements from production research , manufacture, marketing to after services, established a complete quality management and assurance system . Also we take effective marketing management protection measures to control the products qulity ,working efficiency and service attitudes ,to ensure all our clients have our best quality products and best services.
