| Main Box Packing Size: | 200cm(High) X 71cm (Wide) X 30cm (Deep) | Alarms Stype: | Sound & Led Alarm |
|---|---|---|---|
| Standard: | CE; ISO9001;ISO14001 | Supply Ability: | 1500 PCS Per Month |
| Power Supply: | 85V-264V AC | Sensitivity Sensitivity: | 100 Level |
| Operating: | -20℃ To 50℃ | Material: | ABS Material |
| Warranty: | 2 Years Warranty | Waterproof Rate: | IP65 |
| Detection Zone: | 6 Zones |
ABS Material Waterproof IP65 Arch Door Frame Metal Detector Suit For Outdoor and Indoor
【TECHNICAL PARAMETERS】
External Dimensions:229cm (High) x 56cm (Wide) x 19cm (Deep)
Input voltage: AC85V-264V, 50/60Hz Power: <30W
Gross weight: 63.5KG
Working temperature: -20℃~ 50℃
Sensitivity: 100 steps adjustable
Alarm: Visible and audible alarm
Inner Dimensions: 200cm(High) x 70cm (Wide) x 60.5cm (Deep)
【Characteristic & Function】
| Model Number | UB500 Plus |
| Vertical dimension | 229cm(High) x 56cm (Wide) x 19cm (Deep) |
| Vertical channel size | 2000x700mm |
| Detection door packing size | 229cm (High) x 56cm (Wide) x 19cm (Deep) |
| Net weight of main box/detection door | 53.5KG |
| Gross weight of main box/detection door | 63.5KG |
| Working voltage | 65V~264V 50/60Hz |
| Power consumption | 20W |
| Working frequency range | 4-8KHZ |
| Working environment temperature | -20℃ ~ 55℃ |
| Waterproof rate | IP65 |
New Design ABS Material Waterproof Arch Walk Through Metal Detector
1.Six mutual over-lapping detecting zones,
2.Simultaneous alarm from multi- zones;
3.Sensitivity adjustable: Each zone has 100 sensitivity level;
4.Sound & LED alarm: Both Side LED indicator; Easily show where the metal is;
5. Automatically count passengers and alarm times;
6.Alarm strength indicator on control panel;
7. Password protection, only the authorized person can operate;
8.Easy assembly: designed with only 2 pieces cables and 8 screws, simply-to-follow instruction;
9. Harmless to human body: is harmless with heart pacemaker, pregnant women, magnetic floppy, recording tapes, etc;
10.Using high density fireproof material;
11. Program Self-diagnostic when power on,no need initial or periodic calibration;
12.Modularization design,easy for maintenance and replacement;
13.Sensitivity Test piece: One yuan Coin, omnidirectional detection;

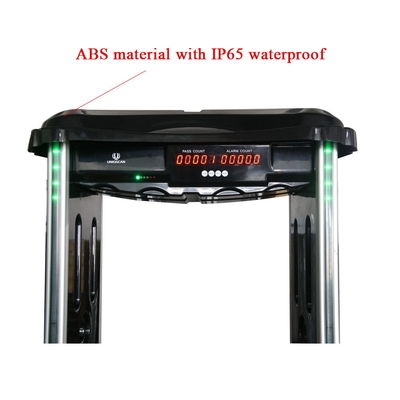

14.Appearance design is ABS Material, good looking appearance. The gross weigh is light than other type walk through metal detector.
15. Waterproof:IP65
16.4-8 hours backup battery (Option).
Neutral Packing:
Q'TY: 1 PC
N.W.: 53.5KGS
G.W.: 60.5 KGS
MEAS.: 2260*580*200mm+1025*820*400mm=0.467CBM
2 Doors Panel Packed In 1 Carton Box:2260*580*200mm
Main Control Box Packed In 1 Carton Box:1025*820*400mm
