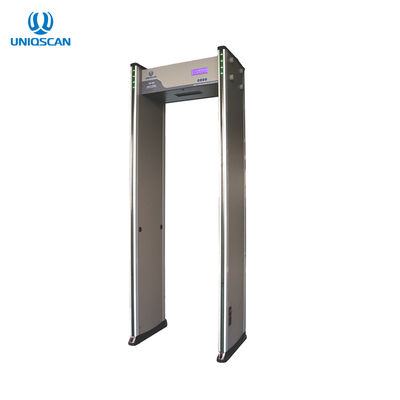

Uniqscan pass through an arched metal detector with a small LCD screen

Large Image : Uniqscan pass through an arched metal detector with a small LCD screen

Product Details:

Place of Origin:	China
Brand Name:	UNIQSCAN
Certification:	CE ISO
Model Number:	UB600

Payment & Shipping Terms:

Minimum Order Quantity:	one
Price:	negotiation
Packaging Details:	Standard External size:2200mm(H)X800mm(W)X580mm(D) Standard Internal size: 2010mm(H)X700mm(W)X500mm(D) Package size for door panels: 2260650260mm 1ctn Package size for control unit: 780390250 mm1ctn Gross weight: 65KG Application lExhibition center,
Delivery Time:	5-8 work days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	3000 Piece/Pieces Per Month

Contact Now

Detailed Product Description

Product Name:	Metal Detector Walk Through	Usage:	Security Scanner
Warranty:	1 Year	Alarm:	Sound & LED Alarm
Sensitivity:	256 Sensitivity Level	Zones:	6/12/18 Zones
Display:	Small LCD Screen
Highlight:	Single Zone Door Frame Metal Detector , IP67 Door Frame Metal Detector , 7" LCD Walk Through Scanner

UNIQSCAN pass through an arched metal detector with a small LCD screen

Parameters :

Detecting zone:	6/12/18 zones
Display way:	Small LCD screen
Sensitivity:	0-255 adjustable
Power Supply:	AC85V-264V
Working temperature:	-20ºC--+50ºC
Working Frequency:	4KHZ-8KHZ
Gross weight:	65KG
Warranty:	2 years
Standard External size:	2200mm(H)X800mm(W)X580mm(D)
Standard Internal size:	2010mm(H)X700mm(W)X500mm(D)
Package size for door panels:	2260650260mm *1ctn
Package size for control unit:	780390250 mm*1ctn

Characteristic & Function:

Six mutual over-lapping detecting zones, Simultaneous alarm from multi- zones;
Small LCD screen, English operating software, easy to operate.
Sensitivity adjustable: Each zone has 255 sensitivity level
Sound & LED alarm: Both Side LED indicator ,easily show where the metal is.
Automatically count passengers and alarm times
Alarm strength indicator on control panel
Password protection, only the authorized person can operate.
Easy assembly: designed with only 2 pieces cables and 8 screws, simply-to-follow instruction.
Harmless to human body: is harmless with heart pacemaker, pregnant women, magnetic floppy, recording tapes, etc.
Using high density fireproof material
Program Self-diagnostic when power on,no need initial or periodic calibration
Modularization design, easy for maintenance and replacement.
Sensitivity Test piece: One yuan Coin, omnidirectional detection
4-8 hours backup battery (Option)

Uniqscan pass through an arched metal detector with a small LCD screen 0

We has been supplying quality products worldwide for over 40 countries, 12 years, with wide product line consists of 4 groups, includes:

X-Ray Baggage Scanner
Walk Through Metal Detector
Hand Held Metal Detector
Under Vehicle Inspection System

Detail Photo :

Uniqscan pass through an arched metal detector with a small LCD screen 1

Installation Case :

Uniqscan pass through an arched metal detector with a small LCD screen 2

Company Profile :

Uniqscan pass through an arched metal detector with a small LCD screen 3

Certiification :
