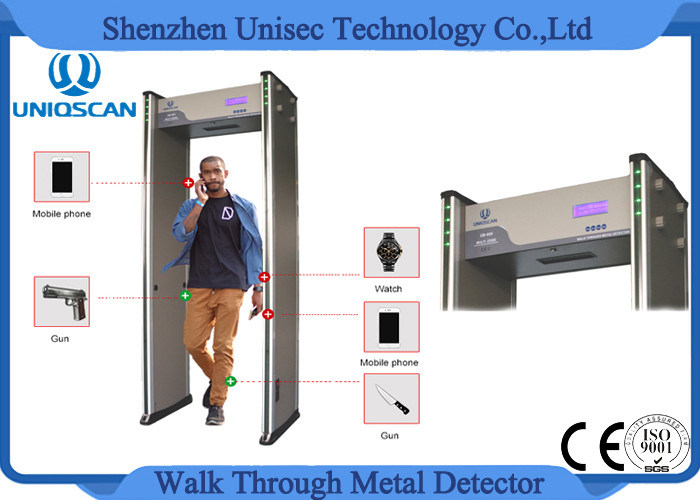

18 Zones Archway Metal Detector 255 sensitivity Security Walk Through Gate

Large Image : 18 Zones Archway Metal Detector 255 sensitivity Security Walk Through Gate

Product Details:

Place of Origin:	Guangdong(China mainland)
Brand Name:	Uniqscan
Certification:	CE,ISO
Model Number:	UB600

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	US $0-499 per set
Packaging Details:	Carton Box
Delivery Time:	7 days after the payment
Payment Terms:	Western Union, T/T, L/C
Supply Ability:	1000 sets per month

Contact Now

Detailed Product Description

Name:	Airport Security Metal Detectors	Model NO:	UB600
Application:	Airport,factory,school	Power Supply:	AC100V-240V / 47.5-60Hz
Sensitivity:	0-255 Adjustable	Gross Weight:	65 KG
Environment:	Indoor Or Outdoor
High Light:	walk through body scanners , metal detector walk through gate

18 Zones Archway Metal Detector 255 sensitivity Airport Security Walk Through Gate

Brief:

6/12/18 zones Option
Small LCD screen display
Each zone has 255 sensitivity level
Easy assembly&Password protection
2 years warranty

Parameters :

Detecting zone:	6/12/18 zones
Display way:	Small LCD screen
Sensitivity:	0-255 adjustable
Power Supply:	AC100V-240V
Working temperature:	-20ºC--+50ºC
Working Frequency:	4KHZ-8KHZ
Gross weight:	65KG
Warranty:	2 years
Standard External size:	2200mm(H)X800mm(W)X580mm(D)
Standard Internal size:	2010mm(H)X700mm(W)X500mm(D)
Package size for door panels:	2260650260mm *1ctn
Package size for control unit:	780390250 mm*1ctn

Characteristic & Function:

Six mutual over-lapping detecting zones, Simultaneous alarm from multi- zones;
Small LCD screen, English operating software, easy to operate.
Sensitivity adjustable: Each zone has 255 sensitivity level
Sound & LED alarm: Both Side LED indicator ,easily show where the metal is.
Automatically count passengers and alarm times
Alarm strength indicator on control panel
Password protection, only the authorized person can operate.
Easy assembly: designed with only 2 pieces cables and 8 screws, simply-to-follow instruction.
Harmless to human body: is harmless with heart pacemaker, pregnant women, magnetic floppy, recording tapes, etc.
Using high density fireproof material
Program Self-diagnostic when power on,no need initial or periodic calibration
Modularization design, easy for maintenance and replacement.
Sensitivity Test piece: One yuan Coin, omnidirectional detection
4-8 hours backup battery (Option)
