X Ray Baggage Scanner Machine SF6040

X Ray Baggage Scanner Machine SF6040
X Ray Baggage Scanner Machine SF6040

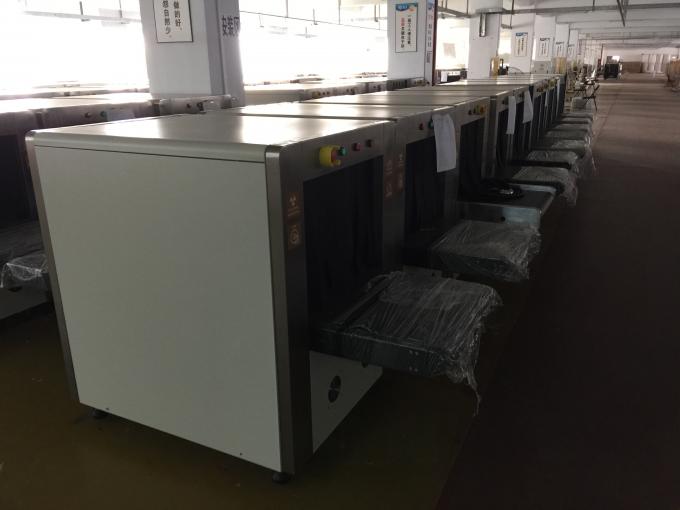

Large Image :  X Ray Baggage Scanner Machine SF6040

Product Details:
Place of Origin: China
Brand Name: Uniqscan
Certification: CE ISO
Model Number: SF6040
Payment & Shipping Terms:
Minimum Order Quantity: 1 UNIT
Price: negotiation
Packaging Details: Wooden box
Delivery Time: one week
Payment Terms: T/T, L/C, Western Union, MoneyGram
Supply Ability: 100sets per month
Detailed Product Description
Product Name:: X Ray Baggage Inspection Conveyor Speed:: 0.22m/s
Conveyor Max Load:: 150kg Tunnel Size :: 600 (W) ×400 (H) Mm
Cooling / Duty Cycle:: Oil Cooling /100% Image Grey Level:: 4096
Generate Angle:: 80° Power Consumption:: 1.0KW (Max)
High Light:

security luggage scanner

,

baggage scanner machine


Medium size X ray Baggage Scanner , SF6040 X Ray Luggage Scanner

General Specifications:

Tunnel Size: 600(W)*400H)mm
Conveyor Speed: 0.22m/s
Conveyor Max Load: 150kgs
Wire Resolution:  40AWG
Spatial resolution: horizontal: 1.0mm, vertical:1.0mm
Penetration: 40mm Steel
Film Safety: Guarantee ISO1600 Film
X-ray Leakage: <1μGy/h (at a distance of 5cm From external housing)
Pass rate: 720 bags per hour
Beam direction: Upward
Generate angle: 80 degree
Anode Voltage: 140-160Kv
Anode power: 0.7 to 1.2mA
Cooling / Duty Cycle: Oil Cooling /100%
X-ray Sensor: L-Shaped Photodiode Array (mono-energetic), 12bit Deep
Monitor: High Resolution Color, LCD Accord, 19 inch
Image Processing:

Edge enhancement, image strengthening, image lightening,
reducing darkening, image returning, image retrieval.

Image Grey Level: 4096
Image Max Resolution: 1024 * 1280 pixel
Image Processing: 24bit for processing real time
Image storage: Storage 60000 pictures in real time
Zoom: max 16 Times Enlarge, Whole screen continuous observation
Operation temperature/Humidity: 0℃-45℃/20%-95%(non-condensing)
Storage Temperature/Humidity: -20℃-60℃/20%-95%(non-condensing)
Operation Power: 220VAC(±10%)50±3Hz
Power Consumption: 1.8 KW (max), 0.3KW(working)
Noise: <60db



Image Display:

  1. 19’’ High Resolution LCD Monitor
  2. Display Resolution: 1280*1024;24 bit/pixel Color
  3. Contrast Sensitivity: 24 Visible Levels, 4096 Gray Level
  4. Image storage: 100,000 pictures in real time (can be customized)
  5. Zoom: 64 Times Enlarge, Whole screen continuous observation
  6. Multi-Energy (M) color material identification: Organic objects in orange color, inorganic objects in blue color, mixture in green color
  7. Edge enhancement: Object contour edge is more distinct
  8. Super image enhancement: Image detail is more distinct
  9. High penetration display: Increase the contrast of bright area in image to make the area that is easy to penetrate appear more clearly
  10. Low penetration display: Increase the contrast of dark area in image to make the area that is difficult to penetrate appear more clearly.
  11. Brightening/dimming: Increase/Decrease brightness of image
  12. Image recurrence: Display the previous twenty images and process any one of them
  13. Image restoration: Restore image to initial status
  14. Assist to detect drug and explosive powder


Special features:

  1. Network interface: Capable of connecting to LAN, and support multi-terminal check for baggage at same time
  2. Safety ray: Ray is transmitted under automatic control, avoiding the error
  3. One-key shutdown control: Just rotate the key to shut down the machine; it is safety, easy and convenient
  4. Eagle eye: Capable of expediently observing the magnifying area
  5. Self-diagnosis function: Give message automatically if malfunction for prompt maintenanceTIP and training software


Environment Specifications:

  1. Operating temperature/humidity: 0℃ ~ 45℃/20% ~ 95% (Non-condensing)
  2. Storage temperature/humidity: -20℃ ~ 60℃/20% ~ 95% (Non-condensing)
