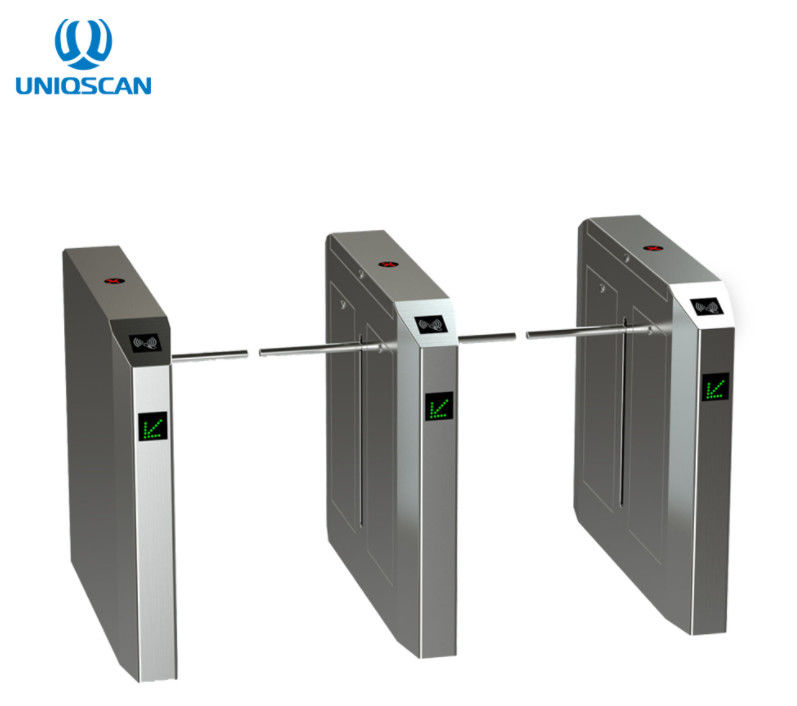

Bi directional Tripod Turnstile Gate Flap Barrier Gate 24V DC Brushless Motor

Bi directional Tripod Turnstile Gate Flap Barrier Gate 24V DC Brushless Motor
Bi directional Tripod Turnstile Gate Flap Barrier Gate 24V DC Brushless Motor

Large Image :  Bi directional Tripod Turnstile Gate Flap Barrier Gate 24V DC Brushless Motor

Product Details:

Place of Origin: CHINA
Brand Name: UNIQSCAN
Certification: CE ISO
Model Number: UT550

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: negotiable
Packaging Details: carton package
Delivery Time: Shipment will take 15 days after receipt of full payment
Payment Terms: T/T, Western Union
Detailed Product Description
Product Name: Flap Barrier Gate Opreation: Full Automatic
Power Voltage: AC220V/110V±10%, 50Hz Warranty: 1 Year
Motor Type: 24V DC Brushless Motor Passing Speed: 35 Person/min
ODM/OEM: Accepted Pass: Bi-directional Pass
Material: 304 Grade Stainless Steel
High Light:

Bi directional Tripod Turnstile Gate

,

24V Tripod Flap Barrier Gate

,

24v Tripod Turnstile Gate

Bi directional Tripod Turnstile Gate Flap Barrier Gate 24V DC Brushless Motor

1. Description

Tripod turnstile series are intelligent passage management equipment researched, developed and produced by our company.The equipment is integrated with delicate mechanical transmission, microprocessor control, and various read/write techniques. It can be used for intelligent control and management of the passage after equipped with different read/write devices.

The outline of the product is formed after bending the stainless steel plate. The shape is featured as pleasing appearance, good looking, stainless and durable. The system is provided with a standard electric interface and is easily integrated into the equipment with read/write facilities such as magnetic card, bar code card, ID card and IC card. As a result, an orderly and civilized passage is provided for the personnel in and out, and illegal personnel can be barred. At the same time, a special fire control interface is equipped in the system to meet the requirement of fire control passage, so that a rapid down rod control may be realized in emergency for diverting passengers.

Product Description

2. Main Functions and Features of the System

1) The entire system runs smoothly, with a small noise and free of mechanical impact.

The system adopts the exclusive technique of Jaw clutch. As a result, the turnstile is more accurate and reliable for zero point locking and unlocking.

2) DC Brushless Motor, Maintenance Free

3) It has failure self-detect and alarm indication function, facilitating maintenance and application for the users.

4) It is provided with multiple operation modes for selection. It can either read card in double way for flow limit, or reading card in a way while barring in the other, or read card in a way while free passage in the other. Moreover, the operation mode of turnstile may be set up with the built-in small keyboard.

5) It has automatic function of opening or closing when power off.

6) The equipment is provided with a unified, standard electric interface and is available to be integrated with various read/write facilities to facilitate the system integration. It is able to realize far end control and management with the help of administrative computer.

7) It has a function of reading card with or without memory, and it may be set up with the built-in small keyboard in accordance with the requirements of the users.

8) Counting the passing people number automatically, and with LED display

9) Direction indicator function, showing passing or prohibiting for the people

10) Prohibiting opposite direction passing, one side reading the card, the other side will lock when you passing forcedly; the locking time can be set, and unlocked by the card.

11) Prohibiting illegal passing, the turnstile without the card, the locking time can be set, and unlocked by the card.

12) Anti-hit against function, when the turnstile touches the passing people, it will stop and after several seconds, it will turn again.

13) Self resetting function, the system will cancel the people passing right when reading the card but not passing, the time can be set.

14) RS485 Communication function



3. Technical Data:



Item

Full Automatic DC Brushless Motor Type Tripod Turnstile

1

Power Voltage

AC220V/110V±10% 50HZ/60HZ

2

Operation Temperature

-25°C to +75°C

3

Relative Humidity

<90%, no condensation

4

Access Width

≤600mm

5

Passing Speed

≤40 Persons/min. (IC Card)

6

Motor

0.5NM/24V (Fully Automatic)

7

Input Connection

+12V Level Signal or Pulse Wide>10ms DC12V

8

Communication Connection

RS485 Communication Module Standard

9

Material

Stainless Steel 304; Thickness is no less than 1.5mm

10

IP

IP54

11

Colour

SSB (US32D) - Stainless Steel Brushed/Power Coating (Optional)

12

Operation Place

Subway Station, Hoverport, Tourism, Sports, Exhibition, Swimming Hall,

Residence Area, Enterprise Entrance and Exit, Attendance, Gateway Guard,

Charge Management, Special Access Control, ect.
