One Two Way Flap Barrier Gate Security Access Control Turnstile Gate

large.img.alt
small.img.alt

Large Image :  One Two Way Flap Barrier Gate Security Access Control Turnstile Gate

Product Details:
Place of Origin: CHINA
Brand Name: UNIQSCAN
Certification: CE ISO
Model Number: UT570
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: negotiable
Packaging Details: carton package
Delivery Time: Shipment will take 15 days after receipt of full payment
Payment Terms: T/T, Western Union
Detailed Product Description
Product Name: Swing Barrier Gate Stainless Steel: #304
Swing Direction: One Way Or Two Way Response Time: 1s
Operating Temperature: -15°C ~ 50°C Related Humility: <=95%
Communication Interface: TCP/IP Swing Arm Rotation Angle: 180 Degree
Power Supply: AC110V±10V,60Hz / AC220V±10V,50Hz Dimension: 1200*280*980mm (Standard)
High Light:

Two Way Flap Barrier Gate

,

One Way Flap Barrier Gate

,

SS Access Control Turnstile Gate

One Two Way Flap Barrier Gate Security Access Control Turnstile Gate



UNIQSCAN UT570 304 Stainless Steel Security Access Control Swing Barrier Gate



1. Standard Specification:

Dimension 1200*280*980mm (Standard)
Stainless Steel #304
Power Supply AC110V±10V,60Hz / AC220V±10V,50Hz
Swing direction One way or two way
Swing arm rotation angle 180 degree
Passing Speed 40 persons/min (normal open)
30 persons/min (normal close)
Response Time 1s
Communication Interface TCP/IP
Operating Temperature -15°C ~ 50°C
Related Humility <=95%
Package Plywood Box
Gross Weight Approx. 70KG
Automatic reset time after failure: 10 seconds
Opening and closing time 2-3 seconds





2. Parameters:

1. Standard product features:

1) It has fault self-test and alarm prompt function, which is convenient for users to maintain and use;

2) The operating state of the programmable device through the built-in small push panel on the main control board;

3) Anti-pinch and anti-collision function, when the resistance is blocked during the swing arm reset, the motor will automatically stop working within the specified time. After the default delay, it will be reset again (until reset), and the force is very small (≤2Kg );

4) Anti-shock function, the swing arm is automatically locked when no open signal is received;

5) The swing arm is synchronously adjustable (for double swing);

6) With automatic reset function, the system will automatically cancel the user's permission for the passage when the switch is not open within the specified time;

7) Freely adjustable normally open or normally closed to meet the requirements of different venues;

8) It can be connected with a variety of card reading devices to receive relay switch signals;

9) One-way and two-way pendulum function, which can control the entry and exit of personnel in one direction or two directions;

10) Remote control and management can be realized directly through the management computer;

11) Delay automatic reset, the system defaults to 10 seconds (adjustable) automatic reset after turning on;

12) The power-off swing arm is automatically opened and automatically closed when it is powered, which meets the fire protection requirements.



Note: All size, shape and function can be customized as per customers’ requirements.

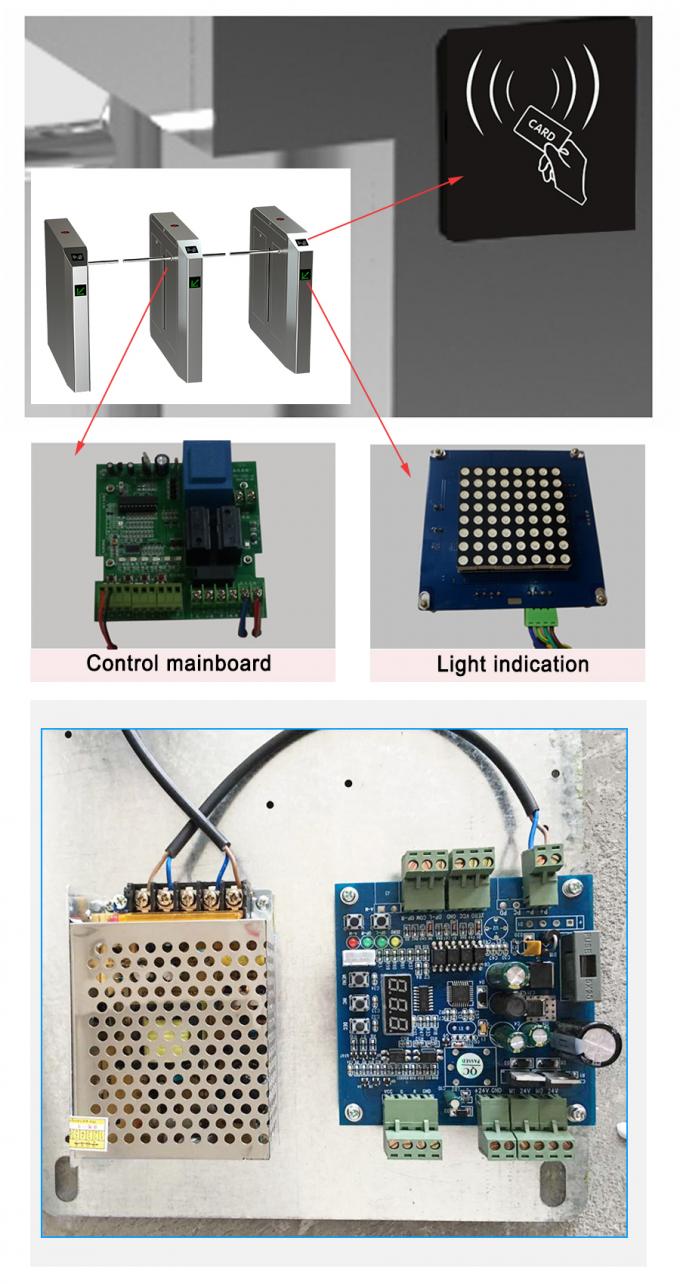

3. Details:



UNIQSCAN UT570 304 Stainless Steel Security Access Control Swing Barrier Gate

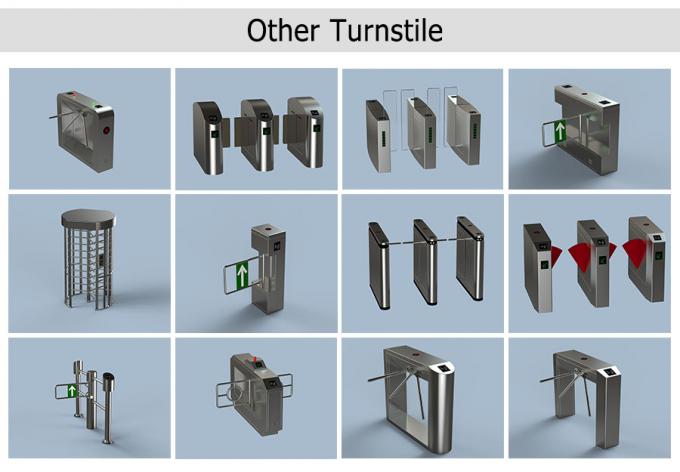

5. Other products

UNIQSCAN UT570 304 Stainless Steel Security Access Control Swing Barrier Gate

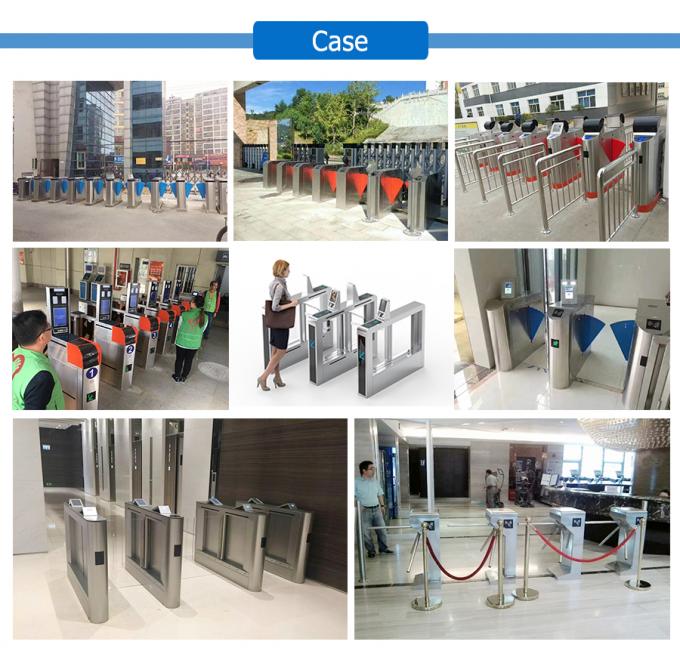

6. Our Case

UNIQSCAN UT570 304 Stainless Steel Security Access Control Swing Barrier Gate

7. Pakaging



UNIQSCAN UT570 304 Stainless Steel Security Access Control Swing Barrier Gate
