Dual Energy SF5636 X Ray Scanning Machine UNIQSCAN 34mm Penetration Resolution For Airport Security Checking

large.img.alt
small.img.alt small.img.alt small.img.alt

Large Image :  Dual Energy SF5636 X Ray Scanning Machine UNIQSCAN 34mm Penetration Resolution For Airport Security Checking

Product Details:
Place of Origin: China
Brand Name: UNIQSCAN
Certification: CE; ISO
Model Number: SF5636
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: 9500usd/unit
Packaging Details: wooden case
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Detailed Product Description
Materia: 304 Stainless Steel Speed: 0.22m/s
Gross Weight: 500kg Steel Penetration: 40mm
Dimension: 1900mm*930mm*1460mm Language: English, Poland, Russia, French
Single Inspection Dosage:: <1.01μGy Leakage Radiation: <0.06µGy/h
High Light:

x ray scanning machine

,

airport x ray machines

UNIQSCAN 34mm Penetration Resolution Dual Energy SF5636 Xray Security Baggage Scanner



Model: SF5636

General Specifications

Tunnel Size : 560 (W) ×360 (H) mm

Conveyor Speed: 0.22m/s

Conveyor Max Load: 165 kg

Single inspection dosage: <1.01μGy

Leakage radiation: <0.06µGy/h

Wire Resolution: 40AWG

Steel Penetration: 40mm

Film Safety: For ISO 1600



X-RAY GENERATOR

Orientation: Upward

Tube Current: 0.4-1.25mA(adjustable)

Anode Voltage: 80-160KV(adjustable)

Angle: 80°

Generator cooling/working periods:

Sealed oil bath with forced air/100%



OPERATING ENVIRONMENT

Storage Temperature: -20oC to 60oC

Operating Temperature: 0oC to 45oC

Relative Humidity:

20 to 95% non-condensing

System Power: 220 VAC (±10%) 50±3HZ

Power wastage: 1.0 KW (Max)

Noise<55DB

X-RAY Sensor: L-shaped array detector, 24bit



Image Performance System:

Display: High-resolution 19 inch color LCD display

Color quality: 24-Bit real colors based on materials

Edge enhancement: Object contour edge is more distinct

Super image enhancement: Image detail is more distinct

High penetration display: Increase the contrast of bright area in image to make the area that is easy to penetrate appear more clearly

Low penetration display: Increase the contrast of dark area in image to make the area that is difficult to penetrate appear more clearly.

Magnifier: Partial magnifying function

Brightening/dimming: Increase/Decrease brightness of image

Image recurrence: Display the previous twenty images and process any one of them

Image restoration: Restore image to initial status

Image storage: Real-time store any image and process it in operation status



System Parameters Dimensions 1900mm*930mm*1460mm
Tunnel Size 560mm(W)×360mm(H)
Weight 500kg
Conveyor Height 675±10mm
Inspection Speed 0.22m/s
Max.Load Weight 100Kg(Even distribution)
Resolution 40AWG (Typical) , 38(Standard)
Penetration 10mm (Typical),8mm (Standard)
Radiation Safety Meets film safety ISO 1600
X-ray Dose Rate <0.4μGy/h (5cm away from the housing)
X-ray Generator Anode Voltage 160kv
Cooling Cycle Oil Cooling 100%
Single Inspection Dose <1.0μGy
Imaging System X-ray Detector Photodiode
Gray Level 4096
Monitor 19’’

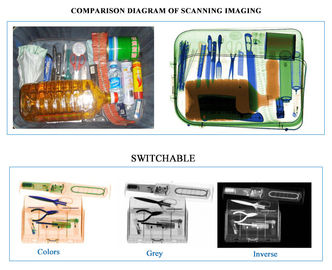

Image Processing System Image Enhancement

*Black and white *Inverse *High-energy penetration *Low-energy penetration *Super-enhancement *Elimination of organic or inorganic substances *Variable absorption rate

*Pseudo-color *Arbitrary selection ( user selected ROI zoom ) ( 64X image magnification/no loss of resolution )

Recognition Orange for organic matter, blue for inorganic, green for metal and compound
Image Playback 50 inspected images could be replayed
Storage Capacity No less than 100 thousand pieces of image
Additional Features Standard Functions *Date/time display *Baggage counter *User management *System operation clock *X-ray on clock *POST *Image storage & retrieval *Diagnosis & maintenance *Dual-scan *Image recognition trainging *Cloud data storage and analysis
Optional Functions *High density area alarm *Explosives and drugs auxiliary examination *Dangerous goods image insertion
Installation Requirements Operation/Storage Temperature 0~40℃,-5~50℃
Humidity 10%~90%(No condensation)
Power Supply 220VAC±5% 50Hz/60Hz



Multi-energy: High/low energy: Switch from high energy to low energy

Color material identification: Organic objects in orange, inorganic objects in blue, mixture in green

Assist to detect drug and explosive powder

Dual Energy SF5636 X Ray Scanning Machine UNIQSCAN 34mm Penetration Resolution For Airport Security Checking 0Dual Energy SF5636 X Ray Scanning Machine UNIQSCAN 34mm Penetration Resolution For Airport Security Checking 1Dual Energy SF5636 X Ray Scanning Machine UNIQSCAN 34mm Penetration Resolution For Airport Security Checking 2



Packing and Shipment:



Packing details carton packing
1 set/ctn , 2 wooden
Packing Size: (L)2800*1450*2080mm & 1440*1250*710mm
Gross Weight:1200 KG
Payment terms T/T, Western Union, Cash,L/C
Shipping methods By air (5-7days, most expensive)
By express (3-7days, more expensive)
By sea (15-28days, cheapest)


Shenzhen Unisec Technology Co., Ltd is a professional security scanner equipment manufacturer, specialized the development and research in the x-ray imagine tehnology, metal detection technology, explosive detection, liquid detection and relative security services.



OUR BRIEF

We always adhere to customer-centric, the principles of honesty and trustworthiness, is committed to efforts to improve and continuous innovate its own responsibility .



OUR TECHNOLOGY
We owns all of the intellectual property rights (IPR) to its core technologies ,and have a experience engineer team with senior x-ray detection exports, signal and imagine processing specialist , excellent technical support and maintance engineers.



OUR SERVICES
We strictly in accordance with the ISO9001 quality standard requirements from production research , manufacture, marketing to after services, established a complete quality management and assurance system . Also we take effective marketing management protection measures to control the products qulity ,working efficiency and service attitudes ,to ensure all our clients have our best quality products and best services.

Dual Energy SF5636 X Ray Scanning Machine UNIQSCAN 34mm Penetration Resolution For Airport Security Checking 3

Dual Energy SF5636 X Ray Scanning Machine UNIQSCAN 34mm Penetration Resolution For Airport Security Checking 4
