Product Details:
Payment & Shipping Terms:
|
| Brand Name:: | UNIQSCAN | Place Of Origin:: | Guangdong, China (Mainland) |
|---|---|---|---|
| Screen:: | 7 Inch LCD Screen | Backup Battery:: | 4-8 Hours (Option) |
| Zones:: | 33/45 Zones | Power Supply:: | AC85V-264V |
| Certification:: | CE. ISO | Sensitivity:: | 999 Sensitivity Level |
| Working Temperature:: | -20℃--+50℃ | Warranty:: | 2 Years |
| High Light: | walk through security scanners,walk through x ray machine |
||

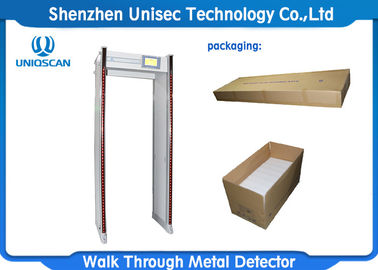

UB800 33zones door frame metal detector, high adjusted sensitivity with 10 type alarm tones walk through metal detector
Company presentation
Shenzhen Unisec Technology Co., Ltd is a professional security scanner equipment manufacturer, specialized the development and research in the x-ray imagine tehnology, metal detection technology, explosive detection, liquid detection and relative security services.
OUR BRIEF
We always adhere to customer-centric, the principles of honesty and trustworthiness, is committed to efforts to improve and continuous innovate its own responsibility .
OUR TECHNOLOGY
We owns all of the intellectual property rights (IPR) to its core technologies ,and have a experience engineer team with senior x-ray detection exports, signal and imagine processing specialist , excellent technical support and maintance engineers.
OUR SERVICES
We strictly in accordance with the ISO9001 quality standard requirements from production research , manufacture, marketing to after services, established a complete quality management and assurance system . Also we take effective marketing management protection measures to control the products qulity ,working efficiency and service attitudes ,to ensure all our clients have our best quality products and best services.
Specification
33 Zones
Power Supply:AC85V-264V / 50-60Hz
Power: <20W
Working temperature:-20℃--+50℃
Working Frequency :4KHZ—8KHZ
Standard External size: 2200mm(H)X800mm(W)X580mm(D)
Standard Internal size: 2000mm(H)X700mm(W)X500mm(D)
Package size for door panels: 2290*560*190mm *1ctn
Package size for control unit: 760*380*260 mm*1ctn
Gross weight: 70KG
CHARACTERISTIC & FUNCTION
Ø 33 detecting zones, Simultaneous alarm from multi- zones;
Ø Sensitivity adjustable: Each zone has 999 sensitivity level
Ø 0-999 adjustable
Ø 7 inch color LCD screen
Ø Infrared remote control
Ø Using high density fireproof material
Ø Automatically count passengers and alarm times
Ø PASS and ALARM count: up to 99999
Ø High sensitivity: Ferrous/ non-ferrous /Alloy can be detected
Ø 15 preset programs for security applications
Ø Alarm volume range from level 0 to 9
Ø Alarm tones: Change from 1 to 9
Ø Anti-interference function, using advanced interactive transmitting and receiving to avoid interference.
Ø 100 frequencies for option. To work with neighbouring gates at 50cm
Ø Sound & LED alarm: Two Sides LED indicator easily show where the metal is.
Ø Detecting speed: up to 100 passenger/ min.
Ø Password protection, only the authorized person can operate.
Ø Easy assembly: designed with only 2 pieces cables and 8 screws, Simply-to-follow instruction. Modularization design, easy Ø for maintenance and replacement.
Ø Harmless to human body: is harmless with heart pacemaker, pregnant women, magnetic floppy, recording tapes, etc.
Ø Sensitivity Test piece: One Yuan Coin, Omnidirectional detection
Ø Network support
Ø Can be customized 36 zones
Ø 4 hours backup battery (Option)
Application
Exhibition center, Electronic Factory, Bank, Prison, Government office, Hotel etc.
