Waterproof ISO Portable Walk Through Metal Detector Security Equipment

video play

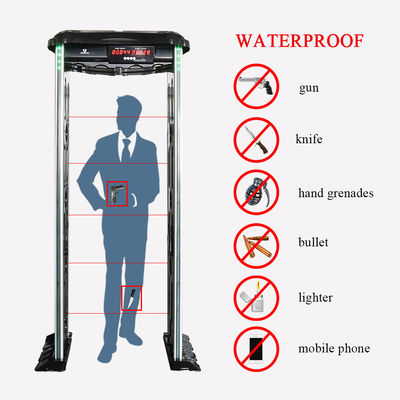

Large Image :  Waterproof ISO Portable Walk Through Metal Detector Security Equipment

Product Details:
Place of Origin: CHINA
Brand Name: UNIQSCAN
Certification: CE ISO
Model Number: UM500
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: 700USD
Packaging Details: carton packing
Delivery Time: 15 working days after full payment
Payment Terms: T/T
Detailed Product Description
Type: Security Equipment Count: 5 Digital Count
Alarm: Sound & LED Alarm Sensitivity: 0-99 Adjustable
Display: Small LCD Screen Usage: Hotel,school,airport,hosital
High Light:

ISO Portable Walk Through Metal Detector


Foldable Walk Through Metal Detector


ISO Walk Through Metal Detector

Waterproof ISO Portable Walk Through Metal Detector Security Equipment


Characteristic & Function

1. Six mutual over-lapping detecting zones,
2. Simultaneous alarm from multi- zones;
3. Sensitivity adjustable: Each zone has 100 sensitivity level;
4. Sound & LED alarm: Both Side LED indicator; Easily show where the metal is;
5.  Automatically count passengers and alarm times;
6. Alarm strength indicator on control panel;
7. Password protection, only the authorized person can operate;
8. Easy assembly: designed with only 2 pieces cables and 8 screws, simply-to-follow instruction;
9. Harmless to human body: is harmless with heart pacemaker, pregnant women, magnetic floppy,

recording tapes,etc;
10. Using high density fireproof material;
11. Program Self-diagnostic when power on,no need initial or periodic calibration;
12. Modularization design,easy for maintenance and replacement;
13. Sensitivity Test piece: One yuan Coin, omnidirectional detection;
14. 4-8 hours backup battery (Option).

15. Waterproof for Outdoor and Indoor use.

16. 2 years warranty with free parts.


Parameters :

Detecting zone: 6 zone
Display way: 5 digital LED count
Sensitivity: 0-255 adjustable
Power Supply: AC100V-240V
Working temperature: -20ºC--+50ºC
Working Frequency: 4KHZ-8KHZ
Gross weight: 55KG
Warranty: 1 years
Standard External size: 2300mm(H)*820mm(W)*600mm(D)
Standard Internal size: 2050mm(H)*740mm(W)*500mm(D)
Package size for door panels: 2260*560*200mm *1ctn
Package size for control unit 1050*820*400 mm*1ctn


Product Point :
>> 6 detecting zones
>> ABS materials with IP65 waterproof
>> Strong aluminum to protect 4 sides so shape won't change
>> The power socket is covered under the rainshed
>> The top just like an umbrella far to the machine body around 5cm

Waterproof ISO Portable Walk Through Metal Detector Security Equipment 0

Our Services

1. Provide free technical training, guidance and information of our products and accessories.
2. Our technical staff could instruct our customers on the installation of barrier gates, tripod turnstiles, flap barriers, swing barriers, full height turnstiles, parking barrier lock and etc, and deal with technical and quality issues.
3. We guarantee more than 10 years’ service life of our products with 1 years’ warranty and life maintenance.
4. Once receive the customer requirements and complaints, we will response within 24 hours.
5. Free maintenance and replacement will be provided if defects result from quality failure of our product.
6. Our company will provide technical services by phone, fax, e-mail, skype etc., please refer to the contact details.
7. Our company will implement the contract strictly; deliver the products to location specified by our customers for free in accordance with the mode of transportation.
8. Our company will provide perfect after-sale services and technical support.Waterproof ISO Portable Walk Through Metal Detector Security Equipment 1
