Product Details:
Place of Origin: Shenzhen
Brand Name: Uniqscan
Certification: CE; ISO9001
Model Number: UB500
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: price negociate
Packaging Details: carton box
Delivery Time: 5 work day
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 2000pcs per month
Detailed Product Description
Payment Terms: T/T Delivery Time: 5 Days
Packaging Details: Carton Box External Dimensions: 2240×670x850mm
GW: 75KG Power: 12W
Packing Size: 2280x700x290mm Model: UB500
High Light:

walk through body scanners

,

pass through metal detector

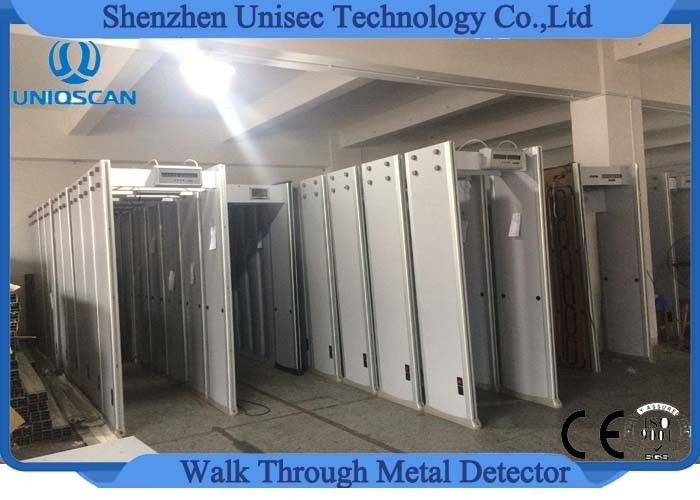

Walkthrough Airport Archway Metal Detector Body Scanners Mobile Connection Technology



Courts Door Frame Metal Detector Gate / Body Scanner Metal Detector For Security Check



Main Features:



  • Touch screen: LED screen, easy to operate and understand.
  • Mobile connection technology: realize mobile APP remote control(optional).
  • IP Grade: IP65 superior waterproof performance.
  • Self calibration once power on.
  • Self diagnostic, it will inform the user when exit the system.
  • Start-stop technology:infrared devices with automatic start-stop technology.
  • Adjust the alarm sounds arbitrarily.
  • Head-to-Toe, Zone Specific Detected.
  • 100 adjustable sensibility levels.
  • There are 6 individual detect zones.
  • Self calibration once power on.
  • Adjust the working frequency automatically or manually.
  • Rapid Installation
  • Detection Technology:Even detection technology, no blind spot.
  • Unmatched Reliability
  • Professional detection process:built in 60 different detection occasions(providing upgrade services).
  • Compliant with the strictest detection standards
  • Working frequency: 12 working frequency.
  • Exceptional Immunity to environmental interferences
  • Counter: Record the pass and alarm numbers.
  • Query function: The system has real-time information query function.
  • Intelligent Standby: The system has intelligent standby operation alerts.
  • Multi-zone technology: 6 detection zones, adjust sensitivity of each zone individually.
  • Self diagnostic, it will inform the user when exit the system.
  • DSP and Microprocessor Controlled, login into the control panel safely.
  • Automatic counting function
  • Security level:100 security levels.
  • Very high Sensitivity to all metals
  • Detection sensitivity of each zone: From 0 to 100 level.
  • Multi-alarm sounds to choose-to fit different applications.



Specification:



FUNCTIONS
Model UB500
External dimensions 2290*560*190mm
Vertical channel size 760*380*260mm

Packing size
2290*560*190mm
NW 62KG
GW 67KG
Working voltage AC90V~240V 50/60Hz
Power 12W
Working frequency 1-12
Working environment -20℃~65℃
Installation environment

(W) 100cm* (L) 200cm

(no metal in this range)

Highest standard Metal size≥6g



Advantages:



Advantages of this walk through metal detector: high sensitivity; anti- interfere;multi detection zones; adjust sensitivity of each zone individually; self diagnostic, when power on; Led screen; high-strength materials, fireproof, anti-corrosion, shockproof; real-time environment interfere monitor.



Achieved a number of patents and copyright certificates on the material, the appearance, and the software copyright.



Application:

  • Airports
  • Correctional Facilities
  • Public Buildings
  • Private Buildings
  • Schools
  • Special Events
  • Loss Prevention
  • Nuclear Facilities
  • Transportation Terminals
  • Courthouses
  • Corporate Security
  • Historical Landmarks
