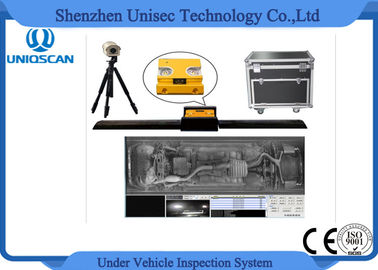

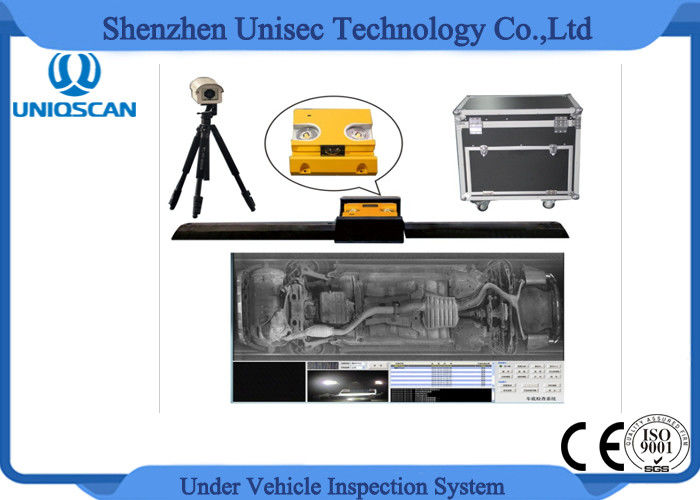

UVSS Mobile Car Bomb Detector Anti - Terrorism Under Vehicle Surveillance System

UVSS Mobile Car Bomb Detector Anti-Terrorism Under Vehicle Surveillance System

Computer:

1,Display: 22 inch LCD Screen

2,CPU: INTEL Quad-Core Processor

3,Motherboard : dedicated motherboard

4,Memory : DDR3 , more than 2GB

5,Hard disk : 500G high-speed hard disk

6,Working voltage : AC220V 50/60Hz

7,Data transmission cable length : 10m (standard)

Vehicle image system, control equipment and environmental adaptability:

1, Scan mode: automatic , non- External trigger scanning;

2, The Maximum scan rate:18kHz;

3, Vehicle speed:≤30km/h;Loading weight: 30 Tons

4, View angle:180 degrees

5, Scanner connecting cable: 10 meters (can be customized more than 10m)

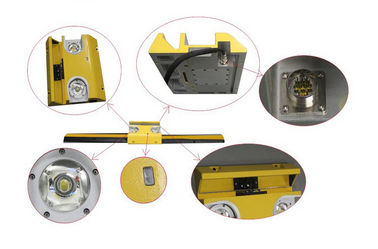

6, Lighting components : Two single sealed LED surface light source ; Life : 50,000h

7, Under Vehicle image scanner with a unique open-wide field scan design;

8, Working voltage: DC24V

9, Power Supply:AC220V/50-60Hz

10, Structure design:single sealed design;

11, Environment temperature: -20 degrees - +55 degrees

12, Appearance: Aluminum copper alloy composite material

Software:

1, using black and white Array CCD scanning technology Dynamic imaging;

2, Scanning Image resolution: ≥ 2048

3, Store or load time: <1 second;

4, Vehicle image display mode: large format transverse;

5, System interface language: English (can be customized);

6, Display resolution: adapt to a variety of display resolution;

7, Vehicle image data transfer interface: NetworkRJ45

8, Scene image display: ≥1 channel

9, Dedicated image processing functions

10, License plate recognition (need customer provide the SDK LPR software of the exported country, we can integrate it to the UVSS without extra cost )
