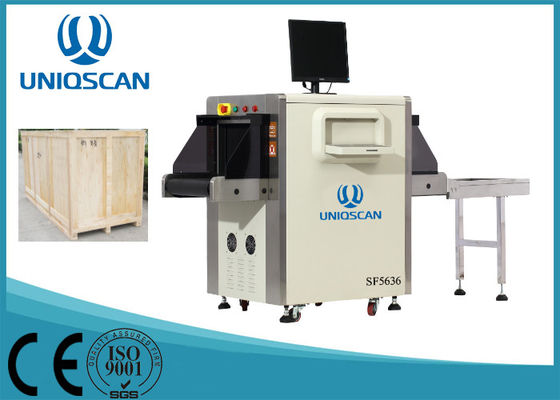

Upward Orientation Airport Baggage Scanner

OEM 560*360mm X Ray Inspection Machine For Station / Metro / Prison / Airport

X-RAY Sensor.................................. L-shaped array detector, 24bit

General Specifications:

Tunnel Size.........................................560 (W) ×360 (H) mm

Wire Resolution..................................40AWG

Steel Penetration................................40mm

Conveyor Max Load............................150 kg

Leakage radiation.............................. <0.06µGy/h

Single inspection dosage.................... <1.01μGy

Conveyor Speed................................. 0.22m/s

Film Safety.......................................... For ISO 1600

X-RAY GENERATOR:

Orientation.......................................... Upward

Tube Current.......................................0.4-1.25mA(adjustable)

Anode Voltage.....................................80-160KV(adjustable)

Angle...................................................80°

Generator cooling/working periods..... Sealed oil bath with forced air/100％

OPERATING ENVIRONMENT

Storage Temperature......................... -20oC to 60oC

Operating Temperature...................... 0oC to 45oC

Relative Humidity.................................20 to 95% non-condensing

System Power..................................... 220 VAC (±10%) 50±3HZ

Power wastage................................... 1.0 KW (Max)

Noise...................................................55DB

Image Performance System:

• Display: High-resolution 19 inch color LCD display
• Color quality: 24-Bit real colors based on materials
• Edge enhancement: Object contour edge is more distinct
• Super image enhancement: Image detail is more distinct
• High penetration display: Increase the contrast of bright area in image to make the area that is easy to penetrate appear more clearly
• Low penetration display: Increase the contrast of dark area in image to make the area that is difficult to penetrate appear more clearly.
• Magnifier: Partial magnifying function
• Brightening/dimming: Increase/Decrease brightness of image
• Image recurrence: Display the previous twenty images and process any one of them
• Image restoration: Restore image to initial status
• Image storage: Real-time store any image and process it in operation status

Multi-energy: High/low energy: Switch from high energy to low energy

Color material identification: Organic objects in orange, inorganic objects in blue, mixture in green

Assist to detect drug and explosive powder

Special features:

• Network interface: Capable of connecting to LAN, and support multi-terminal check for baggage at same time,
• Safety ray: Ray is transmitted under automatic control, avoiding the error,
• One-key shutdown control: Just rotate the key to shut down the machine; it is safety, easy and convenient
• Eagle eye: Capable of expediently observing the magnifying area
• Self-diagnosis function: Give message automatically if malfunction for prompt maintenance

• One-to-one exclusive service
• Online diagnosis service for after-sales service
• 24 months warranty for providing free spare parts
• Free training in factory for your engineer
• Accept arranging engineer go abroad for trainning should be paid
• Tender protection with authorization certificate

Applications:

• Commercial buildings
• Factories(to find needle in clothing, shoes, bags)
• Courthouses
• Embassies
• Government buildings
• Military installations
• Prisons
• Hotels
• Schools
• Convention centers
• Security checkpoints
