| Product Name: | Uniqscan High Security Buried Tyre Killer Spike | Control System: | Electro- Hydraulic |
|---|---|---|---|
| Passing Pressure：: | ≤120 Tons Container Trucks | System Dynamic Power: | 3.75KW |
| Rise Time ：: | ≤1-3S（adjustable） | Fall Time ：: | ≤1-3S（adjustable） |
| Buffer Function: | Buffer Time :0.2s-0.5s | Running Noise: | ≤60 Db |
| Voltage：: | Three-phases 380V,（control Voltage 24V） | Oil Container:: | 60liter |
| Control Solenoid Valve: | 24V | Lifting Solenoid Valve: | 24V |
| Highlight: | one way traffic spikes,parking lot tire spikes |
||

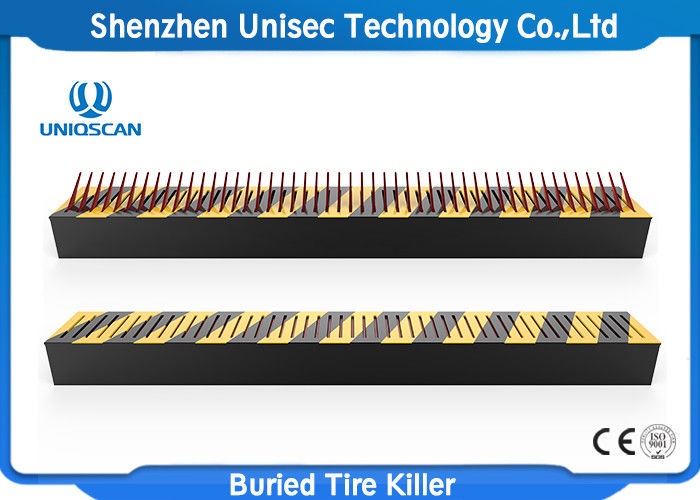

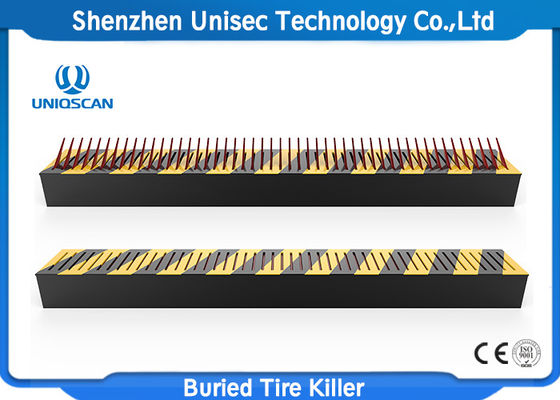

Uniqscan high security buried tyre killer spike
Technical Parameter
| Control System | Electro- Hydraulic |
| Passing pressure: | ≤120 tons container trucks |
| System Dynamic power | 3.75KW |
| Rise time : | ≤1-3S(adjustable) |
| fall time : | ≤1-3S (adjustable) |
| Buffer function | buffer time :0.2s-0.5s |
| Running noise | ≤60 db |
| Voltage: | Three-phases 380V,(control voltage 24V) |
| Oil container: | 60liter |
| Control solenoid valve | 24V |
| Lifting solenoid valve | 24V |
| Remote control distance | Approx .50-100m |
| Working Temperature : | -35℃~75℃(suitable) |
| Material: | A3 steel ,Spray anti-rust paint |
| Material thickness | 16mm,20 mm,25 mm (Optional) |
| Waterproof: | IP68, double sealed |
| LED light color | red,blue,green,yellow,purple,white…(customized) |
| Color: | red,blue,green,yellow…(can be customized) |
| Weight: | 1.5T |
Main Function
Standard Road blocker size: (mm)
L2000*W1000*H760,Rising height:500(Customized)
L2500*W1000*H760,Rising height:500(Customized)
L3000*W1000*H760,Rising height:500(Customized)
L3500*W1000*H760,Rising height:500(Customized)
L4000*W1000*H760,Rising height:500(Customized)
L4500*W1000*H760,Rising height:500(Customized)
L5000*W1000*H760,Rising height:500(Customized)
L5500*W1000*H760,Rising height:500(Customized)
L6000*W1000*H760,Rising height:500(Customized)
