| Product Name: | Archway Metal Detector | Working Temperature: | -20℃--+50℃ |
|---|---|---|---|
| Detecting Zones: | 33zones | Warranty: | 2 Years |
| Operating Temperature: | -40℃ To +85℃ | Gross Weight: | 67kg |
| Highlight: | walk through security scanners,walk through safety gate |
||

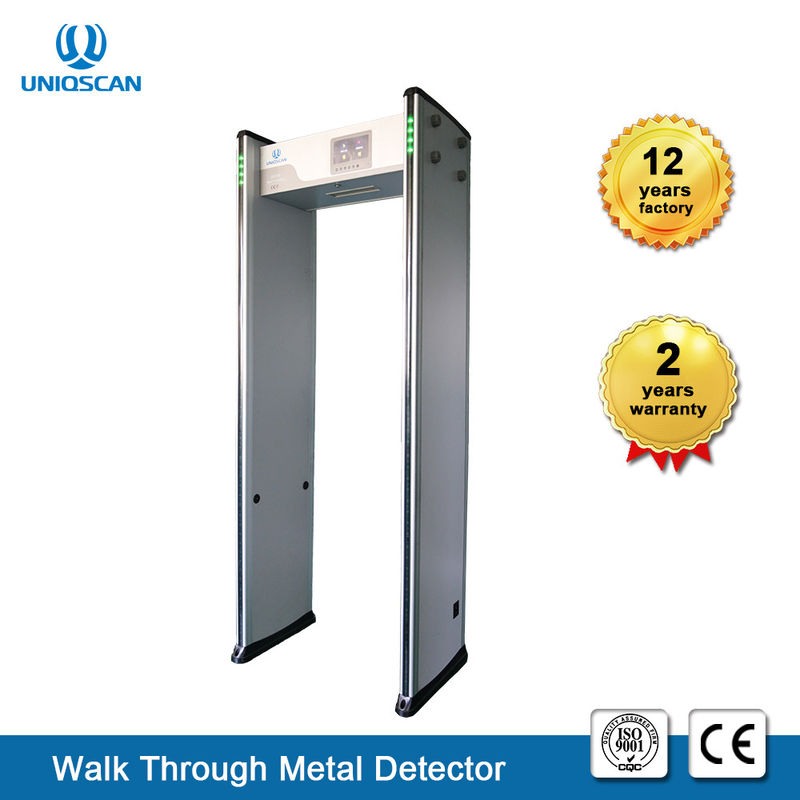

UNIQSCAN 30 program UB800 security equipment arch walk through metal detector Gate
Parameters:
| Power Supply: | AC85V-264V |
| Working temperature: | -20℃--+50℃ |
| Working Frequency : | 4KHZ—8KHZ |
| Standard External size: | 2200mm(H)*800mm(W)*580mm(D) |
| Standard Internal size: | 2010mm(H)*700mm(W)*500mm(D) |
| Package size for door panels: | 2260*650*260mm *1ctn |
| Package size for control unit: | 780*390*250 mm*1ctn |
| Gross weight: | 67KG |
1. 33 detecting zones, Simultaneous alarm from multi- zones;
2. Sensitivity adjustable: Each zone has 999 sensitivity level
0-999 adjustable
3. 7 inch color LCD screen
4. Infrared remote control
5. Using high density fireproof material
6. Automatically count passengers and alarm times
7. PASS and ALARM count: up to 99999
8. High sensitivity: Ferrous/ non-ferrous /Alloy can be detected
9. 15 preset programs for security applications
10. Alarm volume range from level 0 to 9
11. Alarm tones: Change from 1 to 9
12. Anti-interference function, using advanced interactive transmitting and receiving to avoid interference.
13.100 frequencies for option. To work with neighbouring gates at 50cm
14. Sound & LED alarm: Two Sides LED indicator easily show where the metal is.
15. Detecting speed: up to 100 passenger/ min.
16. Password protection, only the authorized person can operate.
17. Easy assembly: designed with only 2 pieces cables and 8 screws, Simply-to-follow instruction. Modularization design,easy for maintenance and replacement.
18. Harmless to human body: is harmless with heart pacemaker, pregnant women, magnetic floppy, recording tapes, etc.
19. Sensitivity Test piece: One yuan Coin, omnidirectional detection
20. Network support
21. Can be customized 36 zones
22. 4 hours backup battery (Option)
