Payment & Shipping Terms:
|Product Name::||Hydralic Rising Bollard||Passing Pressure：:||≤80- 120 Tons Container Trucks|
|Voltage：:||AC220V 50Hz Integrated||Rise Time ：:||≤3-4S （adjustable）|
|Material::||304 Stainless Steel||Fall Time ：:||≤3-4S （adjustable）|
|Working Temperature ::||-35℃~75℃(suitable)||Storage Environment ::||10℃~65℃, Waterproof And Moisture-proof|
rising security bollards,
vehicle barrier bollards

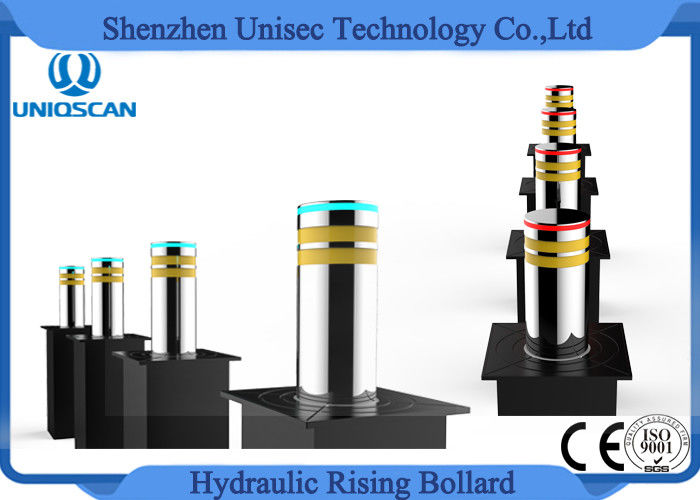

Waterproof Traffic Road Safety Barrier Parking Hydraulic Rising Bollard Stainless
|Control System||Integrated Electro- Hydraulic|
|Passing pressure:||≤80- 120 tons container trucks|
|Voltage:||AC220V 50Hz Integrated|
|System Dynamic power||350W Integrated|
|Rise time :||
|fall time :||
|Material:||304 stainless steel|
|Diameter||168mm,219mm,273mm (can be customized)|
|External housing size||
|Thickness of bollard||6mm,8mm,10mm.12mm,15mm,30mm (optional)|
|Working Temperature :||-35℃~75℃(suitable)|
|Storage Environment :||10℃~65℃, Waterproof and moisture-proof|
Solenoid valve voltage :
|Remote control distance||Approx .50m-100m|
|Running noise||≤60 db|
|Waterproof:||IP68, double sealed|
|Weight:||200 KG approx.|
1.Different thickness of steel is available
2.Different grade of reflective film is available : High-Intensity Reflective Film , engineering grade sheet
3.supper grade sheet
4.Different standard color is available
5.Customized design and size
6. Steady and safe due to the Omron plc control system
7. Speedy and durable due to the use of hydraulic pressure
8. Lower down the bollards by handle valve in case of power failure or fault of automatic system
9. Raise up the bollards by handle pump in case of power failure or fault of automatic system
10. Galvanization is durable and stainless
11.Optimization of frame structure, high anti-impact capability, high loading capability
12.Protecting key avoids mis-operation
1.What is your MOQ?
Our MOQ is 1sets.
2.What is your delivery time?
The time of delivery is within 20 days after receipt of deposit.
3.What is the shipping port?
We ship the goods via ShenZhen Port.
4.What is your terms of payment?
We accept 30% T/T in advance,70% against copy of B/L or before shipment.
5What are your main products?
Our main products are Buried Tire Killer / Hydraulic Road Blocker/Hydraulic Rising Bollard/
Walk Through Metal Detector/X-ray Baggagae Scanner /Under Vehicle Surveillance System/Metal Detector
6.For trouble shooting
a. When press the remote controller, the door can not move:Check if the clutch is in electric state, if not, recover it.
b. When the door travel to the limit, it can not stop: Check if the magnetic steel is missing, if yes, recover it.
c. The remote control distance is short: Check if the battery of remote controller is low.
