Shopping Mall Single Row Automatic Revolving Door Full Height Turnstile

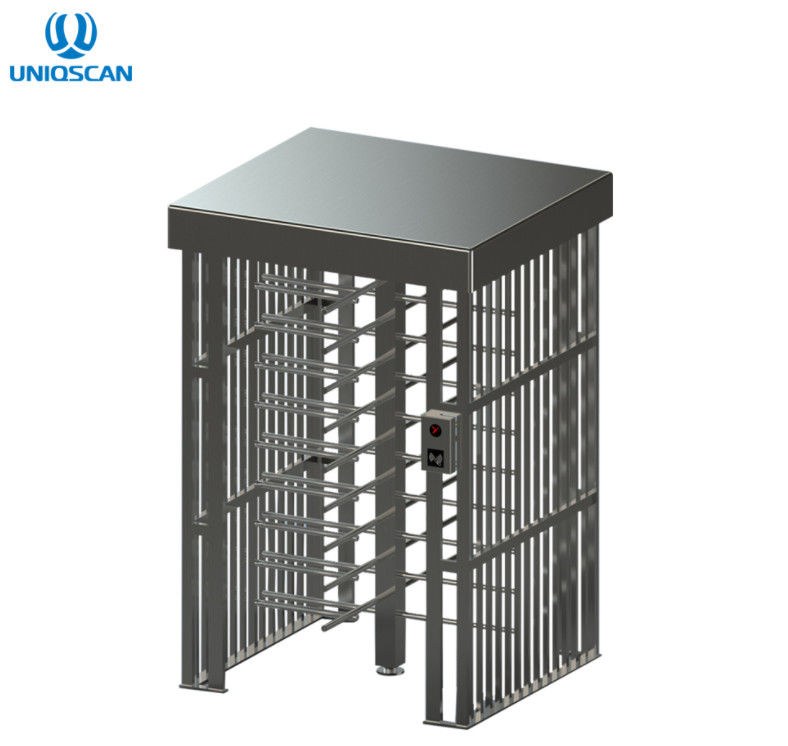

Large Image : Shopping Mall Single Row Automatic Revolving Door Full Height Turnstile

Product Details:

Place of Origin:	CHINA
Brand Name:	UNIQSCAN
Certification:	CE ISO
Model Number:	UT8000-B

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	negotiable
Packaging Details:	carton package
Delivery Time:	Shipment will take 15 days after receipt of full payment
Payment Terms:	T/T, Western Union

Contact Now

Detailed Product Description

Product Name:	Full Height Turnstile	Lane Width:	≤550mm
Power Consumption:	60-70w	Working Temperature:	-30℃ To 70℃
Thickness:	1.5mm	Single Lane Dimension:	170014602300 Mm
Speed:	35-40 Person/min	Application:	Outdoor, Prison, Shopping Mall, Building Etc
Working Voltage:	AC220±10% V	Material:	304# Stainless Steel
Highlight:	Single Row Automatic Revolving Door , RS485 Automatic Revolving Door , Single Row Full Height Turnstile

Shopping Mall Single Row Automatic Revolving Door Full Height Turnstile

304 stainless steel single row full height revolving door made in China/full height turnstile

Material		304 Stainless Steel
Dimensions		170014602300mm
Card-reading window		One
Operating temperature		-25℃ ~ +60℃, RH ≤90%
Related humidity		≥90%RH
Rated power		120W
Communication Interface		RS485,distance ≤1200m
Power supply		AC 220V/110V ±10% 50/60MHZ (optional)
Pass speed		35 persons per minute
Thickness		1.5mm

Introduction

The full high turnstile is designed to provide unsupervised access control for office or building.

The impenetrable construction eliminates any unauthorized access to restricted areas.

To gain authorized passage through the turnstile, the user must present a valid card for the access control system.

Upon presentation of the valid card. the turnstile will unlock and allow the user to pass through the direction requested.

The turnstile can also work with push button, fingerprint and face recognition access control system.

1. Adopt High-level full-automatic mechanism, Brushless DC motor, system operation stable with low noise.

2. Unique two-way anti-reverse function.

3. Anti-pinch and anti-collision function, automatical control system, power board, passage LED indicator, passage mode setting.

4. Anti-shock function, the wing arm is automatically locked when no open signal is received.

5. The power-off the flap is automatically opened and automatically closed when it's powered, which meets the fire protection requirements.

6. With time protection and automatical reset function

7. Unified electrical interface, can be connected with reading and writing equipments.

8. Using standard electrical interface, it can easily intergrate magnetic stripe card, barcode card, ID card, IC card, and other card readers on the device.
