Product Details:
Payment & Shipping Terms:
|
| Name: | Airport Bag Scanner | Tube Current: | 0.4~0.7MA（adjustable） |
|---|---|---|---|
| Anode Voltage: | 100~160KV（adjustable） | X-ray Divergence Angle: | 80 ° |
| Generator Cooling/working Periods: | Sealed Oil Bath With Forced Air/100% | X-RAY Sensor: | L-shaped Array Detector, 24bit |
| Steel Penetration: | 38mm Steel Plate | Film Safety: | For ISO1600 |
| Highlight: | x ray scanning machine,airport x ray machines |
||

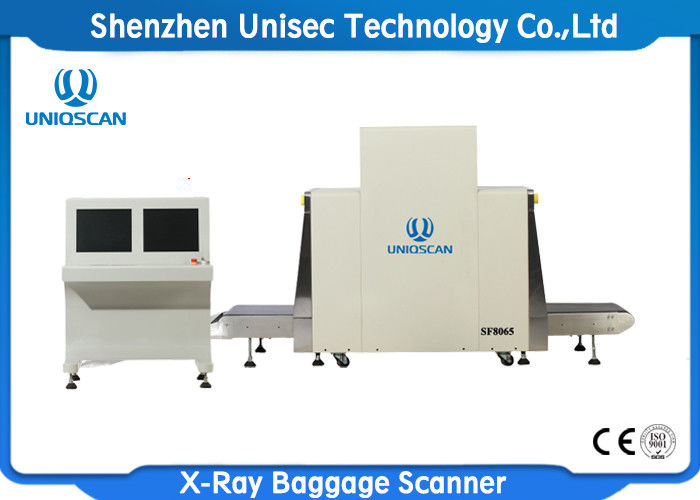

Airport Use Security Inspection Dual Energy X Ray Baggage Scanner SF8065
General specification
Orientation:From the top down;
Tube Current:0.4~0.7MA(adjustable)
Anode voltage:100~160KV(adjustable)
X-ray divergence angle:80 °
Generator cooling/working periods:sealed oil bath with forced air/100%
X-RAY Sensor:L-shaped array detector, 24bit
Steel Penetration:38mm steel plate
Film safety:for ISO1600
Packaging & Delivery
P Packaging Detail:strong cartoon box or ploywooden case
D elivery Detail:working day after confirm the order
FFeature
| Dual Energy ,L-shaped array detector | |||
| apan HAMMATSU detector crystal , Detecting board from Deetee Finland. | |||
| IPC from Taiwan , Interroll Roller from German | |||
| High-resolution PHILIP 19 inch color LCD display | |||
| Four colors to distinguish organic , inorganic and dangerous material | |||
| Multiple functions: High/Low penetration display, Magnifier, Brightening/dimming, | |||
| Image enlarge, recurrence, restoration, storage, network | |||
|
|
|||
| General specification | X-ray Generator | ||
| Tunnel Size : 800(W)×650(H)mm | Orientation: From the top down; | ||
| Conveyor Speed: 0.22m/s | Tube Current: 0.4~0.7MA(adjustable) | ||
| Conveyor Max Load: 200 kg | Anode voltage: 100~160KV(adjustable) | ||
| Single inspection dosage:< 1.15μGy | X-ray divergence angle: 80 ° | ||
| Leakage radiation dosage:≤ 0.14µGy/h | Generator cooling/working periods: | ||
| Wire resolution: 40AWG | sealed oil bath with forced air/100% | ||
| Spatial resolution :1.0mm Horizontal ；1.0mm Vertical | X-RAY Sensor: | ||
| Steel Penetration: 38mm steel plate | L-shaped array detector, 24bit | ||
| Film safety: for ISO1600 | |||
|
|
|||
| X-ray sensor---L type photodiode array detector (energy), 24 bi depth； | |||
| Display---High-resolution liquid crystal display, 24-bit color； | |||
| Color management architectures---Different color, different matter； | |||
| Inverse,white/black/colorized---For compare these images to find the suspected dangerous goods | |||
| To eliminate organic,Inorganic out---In view of the most important image; | |||
| Edge enhancement---The edge of image is more clear； | |||
| High penetration---Make the image more through, for look every goods in one image ； | |||
| Zoom in/zoom out---Make the image bigger ,make the image smaller； | |||
| 1 times size of image---Make image back to 1 times size of image; | |||
| Brighter/darker---Make image more bright /make image darker； | |||
| Replay---Playback all images on the screen at current,be able to do the next steps； | |||
| Application and Certifications | |||
| used for scenic spots, gymnasium, expo centre, left- baggage counter, supermarket, hotel ,court, prison..etc | |||
| Machine parts safeguard measures | |||
| High performance network function | |||
| Chinese ministry of public security testing | |||
| EU CE Certification | |||
| ISO9001 Certification | |||
| ISO14001 Environmental Management | |||
