Security System Baggage Scanner , Small Size X Ray Scanning Machine

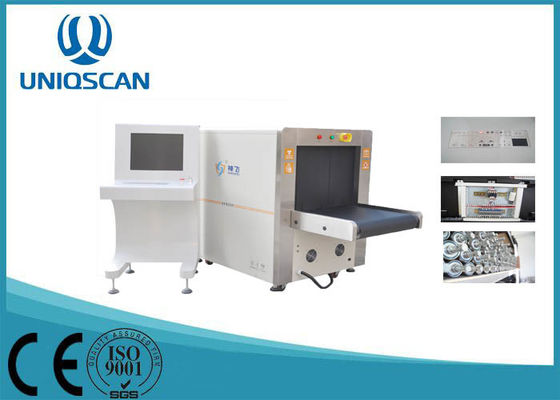

Large Image :  Security System Baggage Scanner , Small Size X Ray Scanning Machine

Product Details:
Place of Origin: China
Brand Name: Uniqscan
Certification: CE ISO
Model Number: SF6550
Payment & Shipping Terms:
Minimum Order Quantity: 1 UNIT
Price: Negotiation
Packaging Details: Wooden box
Delivery Time: in one week
Payment Terms: T/T
Supply Ability: 1000 sets per month
Detailed Product Description
Name: Bag Scanner Machine Conveyor Speed: 0.22m/s
Conveyor Max Load: 170 Kg Single Inspection Dosage: < 1.2μGy
Leakage Radiation Dosage: ≤ 0.1µGy/h Wire Resolution: 40AWG
Spatial Resolution: 1.0mm Horizontal ;1.0mm Vertical Steel Penetration: 38mm Steel Plate
High Light:

x ray scanning machine


baggage x ray machine

CCTV High Quality Small Size X-ray Baggage Scanner for Security System
Packaging & Delivery

P   Packaging Detail:strong cartoon box or ploywooden case

D   elivery Detail:working day after confirm the order
G General specification
Tunnel Size : 650(W)×500(H)mm
Conveyor Speed: 0.22m/s
Conveyor Max Load: 170 kg
Single inspection dosage:< 1.2μGy
Leakage radiation dosage:≤ 0.1µGy/h
Wire resolution: 40AWG
Spatial resolution :1.0mm Horizontal ;1.0mm Vertical
Steel Penetration: 38mm steel plate


Image Performance System
X-ray sensor---L type photodiode array detector (energy), 24 bi depth;
Display---High-resolution liquid crystal display, 24-bit color;
Color management architectures---Different color, different matter;
Inverse,white/black/colorized---For compare these images to find the suspected dangerous goods
To eliminate organic,Inorganic out---In view of the most important image;
Edge enhancement---The edge of image is more clear;
High penetration---Make the image more through, for look every goods in one image ;
Zoom in/zoom out---Make the image bigger ,make the image smaller;
1 times size of image---Make image back to 1 times size of image;
Brighter/darker---Make image more bright /make image darker;
Replay---Playback all images on the screen at current,be able to do the next steps;




Dual Energy ,L-shaped array detector
apan HAMMATSU detector crystal , Detecting board from Deetee Finland.
IPC from Taiwan , Interroll Roller from German
High-resolution PHILIP 19 inch color LCD display
Four colors to distinguish organic , inorganic and dangerous material
Multiple functions: High/Low penetration display, Magnifier, Brightening/dimming,
Image enlarge, recurrence, restoration, storage, network


General specification X-ray Generator
Tunnel Size : 650(W)×500(H)mm Orientation: Upward;
Conveyor Speed: 0.22m/s Tube Current: 0.4~1.2MA(adjustable)
Conveyor Max Load: 170 kg Anode voltage: 100~160KV(adjustable)
Single inspection dosage:< 1.2μGy X-ray divergence angle: 80 °
Leakage radiation dosage:≤ 0.1µGy/h Generator cooling/working periods:
Wire resolution: 40AWG sealed oil bath with forced air/100%
Spatial resolution :1.0mm Horizontal ;1.0mm Vertical X-RAY Sensor:
Steel Penetration: 38mm steel plate L-shaped array detector,
Film safety: for ISO1600


 Application and Certifications

used for scenic spots, gymnasium, expo centre, left- baggage counter, supermarket, hotel ,court, prison..etc
Machine parts safeguard measures
High performance network function
Chinese ministry of public security testing
EU CE Certification
ISO9001 Certification
ISO14001 Environmental Management
Radiation safety certification from China Government
