Security System 33 Zones Metal Detector Body Scanner For Exhibition Center

small.img.alt small.img.alt small.img.alt small.img.alt small.img.alt small.img.alt

Large Image :  Security System 33 Zones Metal Detector Body Scanner For Exhibition Center

Product Details:
Place of Origin: China
Brand Name: Uniqscan
Certification: CE,ISO
Model Number: UZ800
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Carton Box
Delivery Time: with 7 days after the payment
Payment Terms: Western Union, T/T, L/C
Supply Ability: 1000 sets per month
Detailed Product Description
Name: Walk Through Metal Detector Power Supply: AC85V-264V / 47.5-60Hz
Power: <15W Working Temperature: -20℃--+50℃
Waterproof: Can Be Used Outside Sensitivity: 300 Sensitivity Level
Detecting Zone: 33 Zones Gross Weight: 75KG
High Light:

pass through metal detector


metal detector security doors

Security System 33 Zones Metal Detector Body Scanner For Exhibition Center


Parameters :

  • Power Supply: AC100V-240V /50-60Hz
  • Power: <15W
  • Working temperature:-20ºC--+50ºC
  • Waterproof can be used outside
  • Package size for door panels: 2260*750*260mm*1ctn
  • Package size for control unit: 780*390*250m*1ctn
  • Gross weight: 70KG


Characteristic & Function :

  • 33 detecting zones, Simultaneous alarm from multi-zones;
  • Sensitivity adjustable: Each zone has 300 sensitivity level
  • 7 inch color LCD screen
  • Infrared remote control
  • Using high density fireproof material
  • 4-8 hours backup battery(option)
  • Automatically count passengers and alarm times
  • IN / OUT counter: bi-directional counter
  • High sensitivity: Ferrous/ non-ferrous /Alloy can be detected
  • 30 preset programs for security applications
  • Anti-interference function, using advanced interactive transmitting and receiving to avoid interference.
  • 100 frequencies for option. To work with neighbouring gates at 40cm

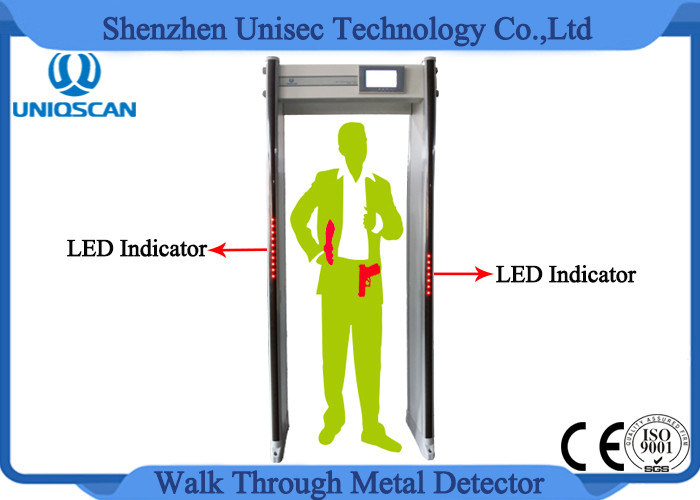

  • Sound & LED alarm: Two Sides LED indicator easily show where the metal is.
  • Detecting speed: up to 100 passenger/ min.
  • Power save: Automatically power OFF if no passengers in 5 mins. Once pass through the gate, it will automatic working.
  • Password protection, only the authorized person can operate.
  • Easy assembly: designed with only 2 pieces cables and 8 screws, Simply-to-follow instruction. Modularization design,easy for maintenance and replacement.
  • Harmless to human body: is harmless with heart pacemaker, pregnant women, magnetic floppy, recording tapes, etc.
  • Sensitivity Test piece: One yuan Coin, omnidirectional detection
  • Network support


Our service :
2 years warranty for free parts.
Free training in the factoty and on the video.
We have professional global team to solve your pronlem
We provide the HD images and video also can do in your brand(OEM)
We can fly to you local to help you finish installing and so on business.

Q:Why us?
A:We Uniqscan have experience in security area about decade,and have many long-term cooperation partners.
Q:How can you promise your quality?
A:We have our own technology team on products,also before delivery we will test our products hundreds times.
Q:What to do if we are in huge demand for these products:
A:Our scale for x-ray baggage scanner is 5000 square meters,and 2000 square meters for walk through metal detector. we have more than 50 technician.


Detail Photo:

Security System 33 Zones Metal Detector Body Scanner For Exhibition Center 0
