Security Road Blocker Hydraulic Automatic Security Bollards AC220V 50Hz

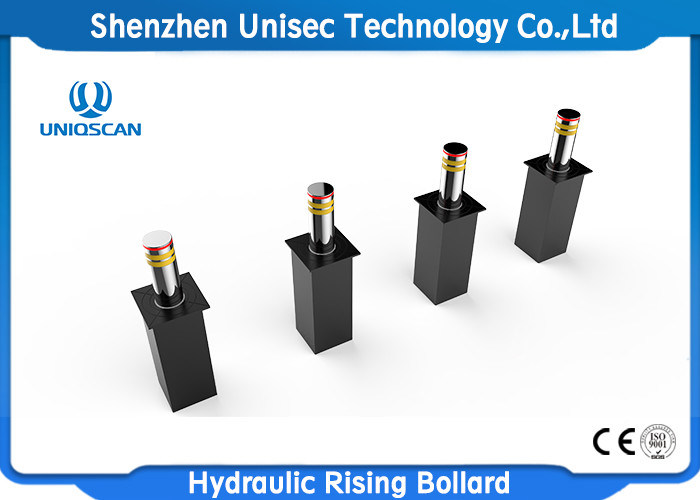

Large Image : Security Road Blocker Hydraulic Automatic Security Bollards AC220V 50Hz

Product Details:

Place of Origin:	China(Mainland)
Brand Name:	UNIQSCAN
Certification:	CE ISO

Payment & Shipping Terms:

Minimum Order Quantity:	1pc
Packaging Details:	Wooden case
Payment Terms:	L/C, L/C, D/A, D/P, T/T, Western Union, MoneyGram

Contact Now

Detailed Product Description

Name:	Hydraulic Rising Bollard	Control System:	Integrated Electro- Hydraulic
Voltage:	AC220V 50Hz Integrated	System Dynamic Power:	350W Integrated
Rise Time:	≤3-4S （adjustable）	Fall Time:	≤3-4S （adjustable）
Material:	304 Stainless Steel	Rising Height:	600mm
Diameter:	168mm,219mm,273mm (can Be Customized)	External Housing Size:	4304301130mm/500500900mm
Waterproof:	IP68, Double Sealed
High Light:	rising security bollards , vehicle barrier bollards

Security road blocker and road automatic rising hydraulic bollards

Security Road Blocker Hydraulic Automatic Security Bollards AC220V 50Hz 0

Main Function

Can be manually raised and fall down if power cut.
Gang-control interface
Reliable structure, heavy duty load, smooth action, low noise.
In rising and falling, reversible operation is available .
Hydraulic drive comes with hydraulic lock
Welding cylinder
PLC programming command control system
LCD display ,Both Chinese and English menu.
PLC built-in encryption system
Heavy duty hydraulic cylinders :HOB63-200CA+I Stroke200 Heavy duty Industrial Level
Double dynamic double oil pump 2.3ML/time

Hydraulic oil hose:PT international interface ,1/2 Double wire high pressure hose

Size	Requirement
Material	304/316 stainless steel/common steel
Screw	Stainless steel
Knock down	Yes
Packing	polyfoam+multilayer kraft
Color	optional
Features	(1)Durable, fastness, environment-friendly (2)High quality with favorable price
