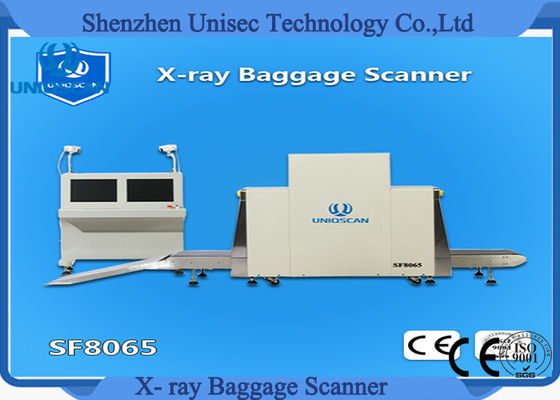

Security Package X Ray Machine , Integrated Luggage Baggage Screening Machine

large.img.alt
small.img.alt

Large Image :  Security Package X Ray Machine , Integrated Luggage Baggage Screening Machine

Product Details:
Place of Origin: Shenzhen
Brand Name: Uniqscan
Certification: CE; ISO
Model Number: 8065
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: negociate
Packaging Details: Plywood box
Delivery Time: 7 work days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 1000opcs per year
Detailed Product Description
Model: 8065 Wire Resolution: 40AWG
X Ray Leakage: <0.15 μGy/h Regeration: Auto&hand
Anode Power: 70-260v Film Safety: Guarantee ISO1600 Film
Image Resolution: 1024 * 1280 Pixel Anode Voltage:: 140-160Kv
High Light:

airport luggage scanner

,

airport x ray scanner


Security Package X Ray Machine , Integrated Luggage Baggage Screening Machine

High Powerful 8065 X Ray Single Operation Table Security Luggage Baggage Scanner Checked Detector Machine

Competitive Advantage:

  • Integrated, cost Effective, Turn-Key Security
  • Fit for small Baggage and Parcel Security Inspection.
  • Increased detection capability
  • Friendly interface for ease-of-use
  • Reliable performance and uncompromising value


Specifications:

Tunnel Size:800(W)*650(H)mm
Conveyor Speed:0.22m/s
Conveyor Max Load:150kgs
Single inspection dosage:< 1.0μGy
Wire Resolution:40AWG
Penetration:40mm Steel
Film Safety:Guarantee ISO1600 Film
X-ray Leakage:<0.1 μGy/h (at a distance of 5cm From external housing)
Generate direct:Upward
Generate angle:80 degree
Anode Voltage:140-160Kv
Anode power:0.7 to 1.2mA
Cooling / Duty Cycle:Oil Cooling /100%
X-ray Sensor:L-Shaped Photodiode Array (mono-energetic), 24bit Deep
Monitor:High Resolution Color, LCD Accord, 19 inch
Image Processing:

Edge enhancement, image strengthening, image lightening,
reducing darkening, image returning, image retrieval.

Image Grey Level:4096
Image Max Resolution:1024 * 1280 pixel
Image Processing:24bit for processing real time
Image storage:Storage 100000 pictures in real time
Zones & Zoom:

64 Image regions, 2, 4, 8, 16,32,64 Times Enlarge, Whole screen
continuous observation

Operation temperature/Humidity:0℃-45℃/20%-95%(non-condensing)
Storage Temperature/Humidity:-20℃-60℃/20%-95%(non-condensing)
Operation Power:220VAC(±10%)50±3Hz
Power Consumption:1.0 KW (max), 0.3KW(working)
Noise:<60db


Application:

End userRecommend X Ray Baggage Scanner model NO.
Airports, Transport terminalsSF6040; SF6550; SF10080; SF100100
Factories (to find needle in clothing, shoes, bags),SF5030; SF5636; SF6040; SF6550
Courthouses, Embassies, BuildingsSF5030; SF5636; SF6040; SF6550
Military installationsSF5030; SF6040; SF6550; SF8065; SF100100
Prisons, Hotels, Schools, Convention centersSF5030; SF5636; SF6040; SF6550; SF10080
Security checkpoints,Special events locationSF5030; SF6040; SF6550; SF8065; SF10080
