|Dimension:||1200*300*980 Mm||Material:||304# Stainless Steel|
|Lane Width:||≤600mm||Speed:||35 Person/min Adjustable|
flap barrier turnstile,
flap barrier system

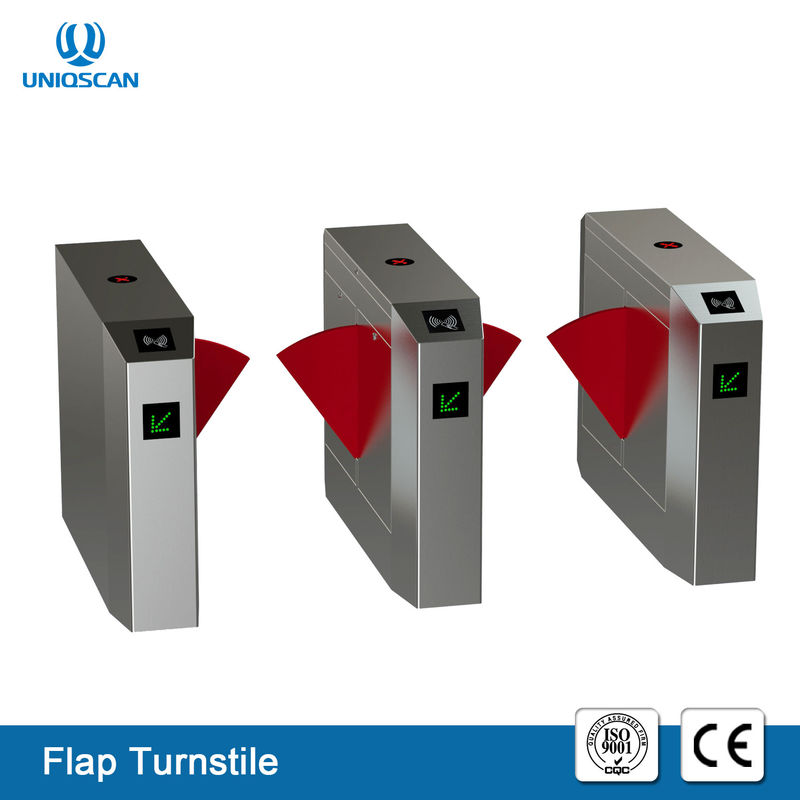

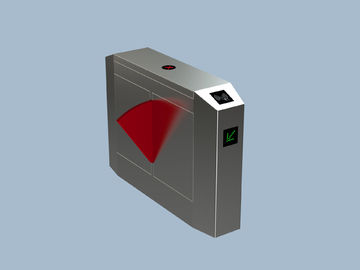

Hot retractable flap gate barrier turnstile for access control system
Flap Turnstile gate technical parameters:
1. Power supply voltage: AC220V ± 10%, 50Hz;
2. Drive motor: DC motor 24V/75W;
3. Working environment temperature: -30 ° C ~ +70 ° C;
4. Relative humidity: relative humidity ≤ 95%, no condensation;
5. Input interface: 12V level signal or 12V pulse signal with pulse width >100ms;
6. Drive current: >200mA;
7. Communication interface: RS485 electrical standard;
8. Communication distance: ≤ 1200 meters;
9. Maximum channel width: 500-600mm;
10. Passing speed: ≤ 40 people / minute;
11. Gate opening and closing time: 1.5 seconds (adjustable);
12. Dimensions: length 1000* width 300* height 980mm;
13. Structure: frame structure / standard stainless steel casing;
14. Working environment: indoors and outdoors.
15. The wing gate main board device has two communication modes TCP/IP output for the main board and the slave board, which is very convenient to install.
16. Wing gate main board comes with test function once every 1.5s / switch gate, the display screen shows more than 5000 times before leaving the factory.
17. The wing gate main board is in visual operation mode.
18. The wing gate mainboard provides Chinese/English menu operation
19. Wing gate motherboard comes with high-definition fidelity audio decoding chip, ready to read / write / erase software intelligent synthesized speech
20. Provide wing gate motherboard 485 communication protocol, remote opening terminal program
a.elegant appearance: 304 stainless steel cabinet and the color of arms can be optional for several color.
b.Equipped with standard input/output signal interface, can be integrated with all types of access control panel,offering complete entrance control solutions.
c. Malfunction self-detection, which is easy for operation and maintenance.
d.Operational mode can be set up through the built-in menu on the control panel.
e.Flap Barrier has several sensors to detect obstructions during its movement. If an obstruction is detected during closing, the arms wing will stop its movement to prevent the user from being clamped.
f. Anti-collision function, the flaps will stay close if not receiving the open signal.
g.Flaps open on power failure. It can be integrated with a Fire alarm system or other alarming signal for emergency. It will open automatically in case of emergency.
h.Flaps reset to close position when power resume.
i.Flaps reset to lock position when access time expire.
j.Prevents Invalid/Tailgate/Wrong direction access.
k.LED Array indication for access granted/denied.
l. Compatible with diverse access control devices.
m. Pedestrian flow directions can be single or double directions.
n. RS485 socket is available to connect the computer.
