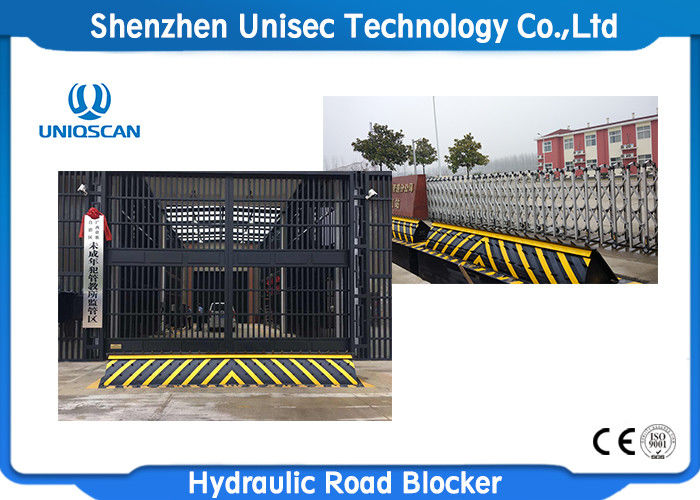

Professional Hydraulic Road Blocker Security Equipment Reliable Structure

Large Image : Professional Hydraulic Road Blocker Security Equipment Reliable Structure

Product Details:

Place of Origin:	China(mainland)
Brand Name:	Uniqscan
Certification:	CE&ISO
Model Number:	Uniqscan

Payment & Shipping Terms:

Minimum Order Quantity:	1 unit
Price:	USD5800/unit
Packaging Details:	carton or wood,standard export packing
Delivery Time:	3-5 days after the receipt of payment
Payment Terms:	Western Union, T/T, L/C
Supply Ability:	1000 units /month

Contact Now

Detailed Product Description

Control System:	Rising Road Blocker	Passing Pressure：:	≤120 Tons Container Trucks
System Dynamic Power:	3.75KW	Rise Time ：:	≤1-3S（adjustable）
Fall Time ：:	≤1-3S（adjustable）	Buffer Function:	Buffer Time :0.2s-0.5s
Running Noise:	≤60 Db	Voltage：:	Three-phases 380V,（control Voltage 24V）
Oil Container::	60liter	Control Solenoid Valve:	24V
Lifting Solenoid Valve:	24V	Remote Control Distance:	Approx .50-100m
Working Temperature ：:	-35℃~75℃（suitable）
Highlight:	hydraulic security barriers , road block barrier

Security Equipment Hydraulic Road Blocker Technical Parameter

Technical Parameter:

Control System	Electro- Hydraulic
Passing pressure:	≤120 tons container trucks
System Dynamic power	3.75KW
Rise time :	≤1-3S(adjustable)
fall time :	≤1-3S (adjustable)
Buffer function	buffer time :0.2s-0.5s
Running noise	≤60 db
Voltage:	Three-phases 380V,(control voltage 24V)
Oil container:	60liter
Control solenoid valve	24V
Lifting solenoid valve	24V
Remote control distance	Approx .50-100m
Working Temperature :	-35℃~75℃(suitable)
Material:	A3 steel ,Spray anti-rust paint
Material thickness	16mm,20 mm,25 mm (Optional)
Waterproof:	IP68, double sealed
LED light color	red,blue,green,yellow,purple,white…(customized)
Color:	red,blue,green,yellow…(can be customized)
Weight:	1.5T

Main Function

Can be manually raised and fall down if power cut.
Gang-control interface
Reliable structure, heavy duty load, smooth action, low noise.
In rising and falling, reversible operation is available .
Hydraulic drive comes with hydraulic lock
Welding cylinder
PLC programming command control system
LCD display ,Both Chinese and English menu.
PLC built-in encryption system
Heavy duty hydraulic cylinders :HOB63-200CA+I Stroke200 Heavy duty Industrial Level
Double dynamic double oil pump 2.3ML/time
Hydraulic oil hose:PT international interface ,1/2 Double wire high pressure hose

Standard Road blocker size: (mm)

L2000*W1000*H760,Rising height:500(Customized)

L2500*W1000*H760,Rising height:500(Customized)

L3000*W1000*H760,Rising height:500(Customized)

L3500*W1000*H760,Rising height:500(Customized)

L4000*W1000*H760,Rising height:500(Customized)

L4500*W1000*H760,Rising height:500(Customized)

L5000*W1000*H760,Rising height:500(Customized)

L5500*W1000*H760,Rising height:500(Customized)

L6000*W1000*H760,Rising height:500(Customized)
