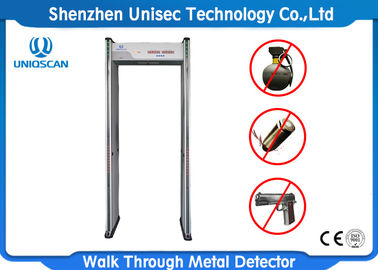

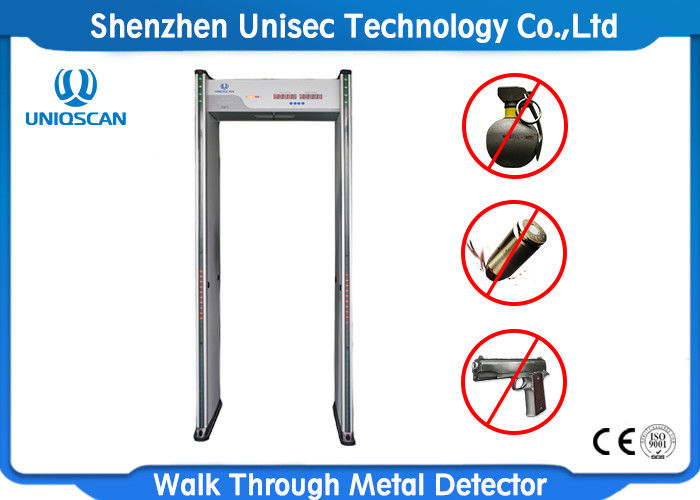

Password Management Walk Through Metal Detector Body Scanner

Password Management Walk Through Metal Detector Body Scanner
Password Management Walk Through Metal Detector Body Scanner

Large Image :  Password Management Walk Through Metal Detector Body Scanner

Product Details:
Place of Origin: Shenzhen
Brand Name: Uniqscan
Certification: CE; ISO9001
Model Number: UB500
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: price negociate
Packaging Details: carton box
Delivery Time: 5 work day
Payment Terms: L/C, T/T, Western Union, MoneyGram,Cash
Supply Ability: 2000pcs per month
Detailed Product Description
Payment Terms: T/T Detection Zones: 6 Zone
Alarm: Sound And Light External Dimensions: 2240×670x850mm
Security Level: 1-100 Each Sensitivity: 0-99 Level
Optional: Remote Control Grosee Weight: 67KG
High Light:

super scanner metal detector


metal wand detector

Password Management Walk Through Metal Detector Body Scanner




Honesty-Credibility is the soul of the company, operating in good faith to promote enterprise development.

Professional-Professional service process, professional quality services.

Dedication-Will spare no effort to serve for Customer.

Value -Take the customer demand as the guidance, provide super value service.


Main Features:

  • Features:

  • Six interlaced detection regions of the same high with the body and combining,
  • LED alarm light on column, displaying the area of metal detected accurately
  • Four pairs of infrared emission and the receiver to prevent detection blind spot
  • 100% Ferrous & non-ferrous metal detect
  • With aluminum alloy binding tape, up to 99% non-condensing
  • Using microprocessor digital control technology, anti-interference ability,
  • Each region has 100 adjustable sensitivity, in accordance with the requirements in the 0-99 arbitrary regulation, and gets rid of the interference of belt, zippers and other objects.
  • Pass-through number and the alarm frequency can be counted automatically
  • Can be used independently, or several detection doors net work (minimum spacing of up to 40CM)to meet the flow requirements of pass through
  • Password protection function: to prevent non-authorized personnel to amend the parameters.
  • Assembled structure: easy installation. User-friendly diagnostics identify fault condition,
  • Standard: "GB 15210-1994. Through-type metal detector door general technical conditions" national standards Basic safety: meeting the requirements of GB4793.and program to be store in non-volatile memory; Comply with IP20(60529) ;Personal safety: Satisfied NILECJ-0601.
  • EMC electromagnetic radiation in line with the standards: comply EN60950,no harm to the wearers of heart pacemakers, pregnant women, film and magnetic recording materials


  • Operating Temperatures
    -4°F (-20°C) to + 158°F (70°C); Humidity: To 95% non-condensing
  • Power
    Fully automatic 100 to 240 VAC, 50 or 60 Hertz, 5 watts; no rewiring, switching or adjustments required. Power supply meets UL, CE,FCC standards.
  • Weatherproofing / Foreign Object Protection Standards
  • Tamper-Proof
    All settings are secured with a key lock and two levels of access codes. Further security is accomplished with a cabinet lock which prevents unauthorized access to physical cables, connectors and electronics.
  • Construction
    Attractive scratch and mar-resistant laminate. Detection Heads and Support: Heavy duty aluminum.
  • Control Outputs
    Solid state switches (low voltage AC or DC) for operating external alarms and control devices.
  • Traffic Counter
    Counter tracks the number of patrons that have passed through the detector, the number of alarms and calculates alarm percentage.
  • Synchronization
    Dual channels and DSP circuitry allow several ZAD-A1's to operate simultaneously in close proximity to one another.
  • Interference Suppression
    Special Security King DSP built-in circuitry eliminates effects from x-ray monitors and other potential electrical interference sources.




Model UB500
External dimensions 2290*560*190mm
Vertical channel size 760*380*260mm
Packing size
Working voltage AC90V~240V 50/60Hz
Power 12W
Working frequency 1-12
Working environment -20℃~65℃
Installation environment

(W) 100cm* (L) 200cm

(no metal in this range)

Highest standard Metal size≥6g


Optional Accessories:


Slipping groove: Let the personal belongings which may be interference (such as keys, watches, cell, etc) slip through.

Remote Control: Control the gate within 10 meters, when paralleled the distance should be short.

Storage Battery: Maintain the gate working for about 4 hours after charged.



1. airport, customs, harbor, station, etc. court, police station, jail, lockup, etc.
2. important place, exhibition, business rally, celebration meeting, stadium, etc.
3. hardware, electronics, jewelry, coinage line , etc.
4. Enightclub, theater, ballroom, bar, KTV, etc.
5.Places where the dangerous items should not be taken with, such as the Bank , Government , Post office, school , private house ,etc.
