| Tunnel Size: | 500(W)*300(H)mm | Conveyor Speed: | 0.22m/s |
|---|---|---|---|
| Conveyor Max Load: | 150KG | Single Inspection Dosage: | < 1.32μGy |
| Wire Resolution: | 40AWG | Steel Penetration: | 43mm |
| Film Safety: | For ISO 1600 | X-Ray Sensor: | 24bit |
| Orientation: | Upward | Storage Temperature: | -20℃ To 60℃ |
| Highlight: | x ray scanning machine,baggage x ray machine |
||

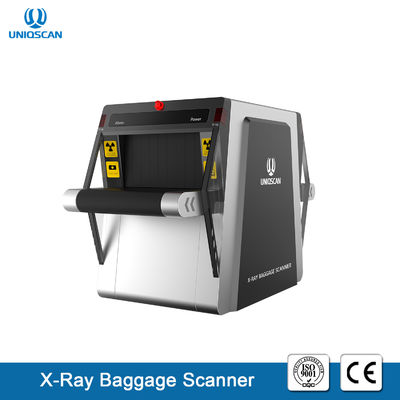

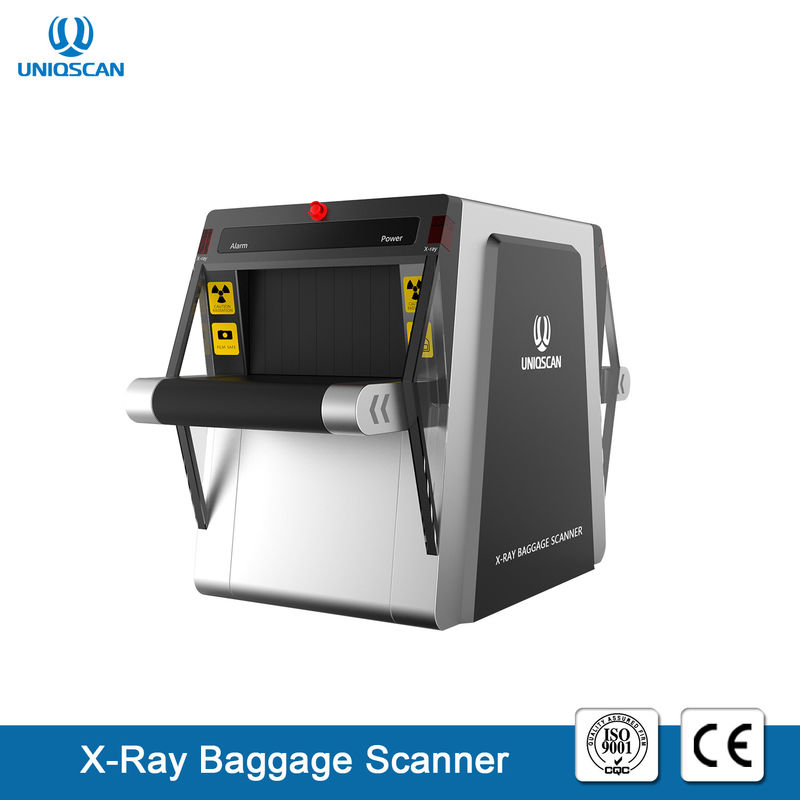

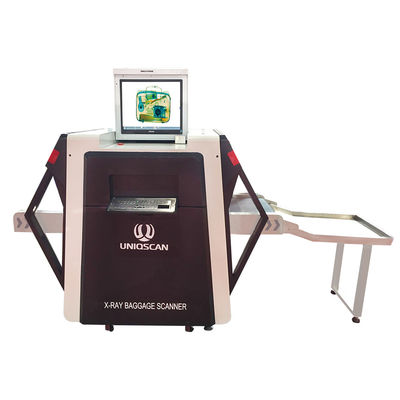

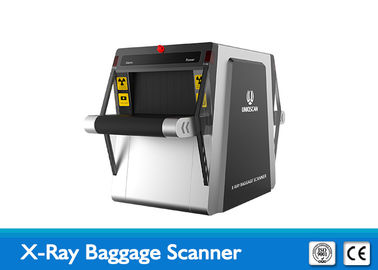

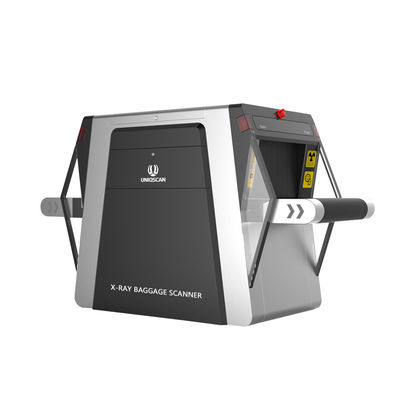

New Designed X-Ray Baggage Scanner with Dual Energy
1,Specification
General Specifications
| Tunnel Size : | 500 (W) ×300 (H) mm |
| Conveyor Speed: | 0.22m/s |
| Conveyor Max Load: | 150 kg |
| Single inspection dosage: | < 1.32μGy |
| Wire Resolution: | 40AWG |
| Steel Penetration: | 40mm |
| Film Safety: | For ISO 1600 |
X-RAY GENERATOR
| Orientation: | Upward |
| Tube Current: | 0.4~1.2mA(adjustable) |
| Anode Voltage: | 100~160KV(adjustable) |
| Angle: | 80° |
| Generator cooling/working periods: |
Sealed oil bath with forced air/100% |
OPERATING ENVIRONMENT
| Storage Temperature: | -20ºC to 60ºC |
| Operating Temperature: | 0ºC to 45ºC |
| Relative Humidity: | 20 to 95% non-condensing |
| System Power: | 220 VAC (±10%) 50±3HZ |
| Power wastage: | 1.0 KW (Max) |
| Noise | <65DB |
X-RAY Sensor:
L-shaped array detector
24bit
Dual energy
Image Performance System:
|
Display |
High-resolution 19 inch color LCD display |
|
Color quality |
24-Bit real colors based on materials |
|
Edge enhancement |
Object contour edge is more distinct |
|
Super image enhancement |
Image detail is more distinct |
|
High penetration display |
Increase the contrast of bright area in image to make the area that is easy to penetrate appear more clearly |
|
Low penetration display |
Increase the contrast of dark area in image to make the area that is difficult to penetrate appear more clearly. |
|
Magnifier |
Partial magnifying function |
|
Brightening/dimming |
Increase/Decrease brightness of image |
|
Image recurrence |
Display the previous twenty images and process any one of them |
|
Image restoration |
Restore image to initial status |
|
Image storage |
Real-time store any image and process it in operation status |
Special features:
|
Network interface |
Capable of connecting to LAN, and support multi-terminal check for baggage at same time |
|
Safety ray |
Ray is transmitted under automatic control, avoiding the error |
|
One-key shutdown control |
Just rotate the key to shut down the machine; it is safety, easy and convenient |
|
Eagle eye |
Capable of expediently observing the magnifying area |
|
Self-diagnosis function |
Give message automatically if malfunction for prompt maintenance |
2,Detaild info for the part
3,Scanned images
