Product Details:
Payment & Shipping Terms:
|
Product Name: | Security Baggage Scanner | Tunnel Size: | 600 (W) ×400 (H) Mm |
---|---|---|---|
Conveyor Max Load: | 150 Kg | Single Inspection Dosage: | < 1.32μGy |
Wire Resolution: | 40AWG | Warranty: | 2 Years |
Certification: | CE, ISO | Orientation: | Upward |
Highlight: | baggage x ray machine,airport x ray machines |

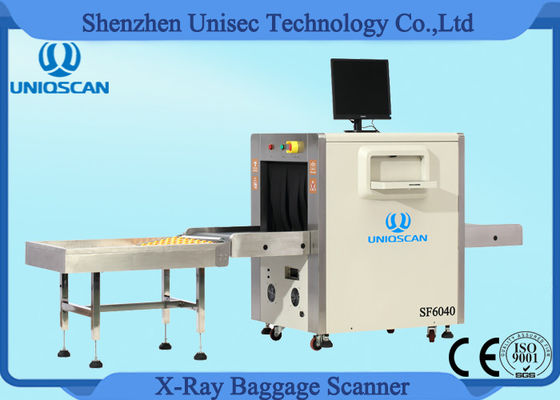

Multi Energy Medium 600*400 mm X Ray Baggage Scanner With 40AWG Wire Resolution
Advantage :
General Specifications:
Tunnel Size : | 600 (W) ×400 (H) mm |
Power Requirement: | 220V AC (±10%) 50±3Hz |
Power consumption: | 1.0KW (Max) |
Noise level: | <60dB |
Conveyor Speed: | 0.22m/s |
Conveyor Max Load: | 150 kg |
Wire Resolution: | 40AWG |
Spatial Resolution: | 1.0mm Horizontal and Vertical |
Steel Penetration: | 40mm |
Single inspection dosage: | < 1.0μGy |
Leakage radiation: | <0.1µGy/h |
Film Safety: | Guarantee ISO1600 Film |
X-Ray Generator Specifications:
Tube Current: | 0.7~1.2mA |
Anode Voltage: | 140~160KV |
Detector: | L-shaped Array |
Cooling: | Sealed oil bath with forced air |
Duty Cycle: | Rated for 100%Duty Cycle |
Beam Angle: | 80° |
Computer Specification:
Processor: | I3-4340 (Dual core four thread) 3.6 GHZ 22nm 54W |
Memory: | 4GDDR3 Loptop Memory |
Hard Disk : | 1T |
Image Display:
Special features:
Environment Specifications:
Application:
