Product Details:
Payment & Shipping Terms:
|
Product Name:: | X Ray Baggage Scanner Machine | Tunnel Size :: | 600 (W) ×400 (H) Mm |
---|---|---|---|
Beam Angle:: | 80° | Power Requirement:: | 220V AC (±10%) 50±3Hz |
Leakage Radiation:: | <0.06µGy/h | Wire Resolution:: | 40AWG |
Steel Penetration:: | 40mm | Noise Level:: | <60dB |
Highlight: | x ray scanning machine,airport x ray machines |

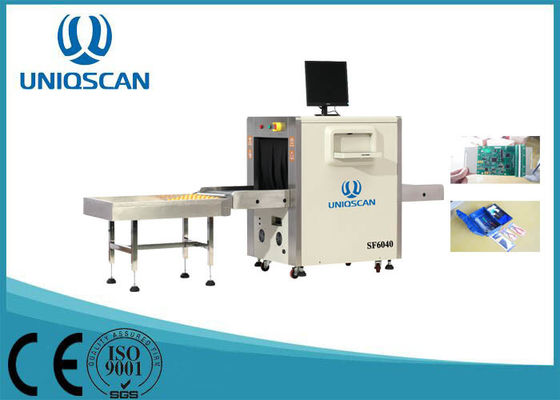

Multi Energy 600*400 mm X-Ray Baggage Scanner With 40AWG Wire Resolution
General Specifications:
Tunnel Size : | 600 (W) ×400 (H) mm |
Wire Resolution: | 40AWG |
Conveyor Max Load: | 150 kg |
Conveyor Speed: | 0.22m/s |
Power consumption: | 1.0KW (Max) |
Noise level: | <60dB |
Steel Penetration: | 40mm |
Power consumption: | 1.0KW (Max) |
Power Requirement: | 220V AC (±10%) 50±3Hz |
Spatial Resolution: | 1.0mm Horizontal and Vertical |
Leakage radiation: | <0.1µGy/h |
Single inspection dosage: | < 1.0μGy |
X-Ray Generator Specifications:
Tube Current: | 0.7~1.2mA |
Anode Voltage: | 140~160KV |
Detector: | L-shaped Array |
Cooling: | Sealed oil bath with forced air |
Duty Cycle: | Rated for 100%Duty Cycle |
Beam Angle: | 80° |
Image Display:
Special features:
Environment Specifications:
