Product Name: | Security Luggage Scanner | Conveyor Speed: | 0.22m/s |
---|---|---|---|
Conveyor Max Load: | 100 Kg | Single Inspection Dosage: | < 1.32μGy |
Wire Resolution: | 40AWG | Warranty: | 2 Years |
Certification: | CE, ISO | Orientation: | Upward |
High Light: | airport x ray machine,airport x ray scanner |

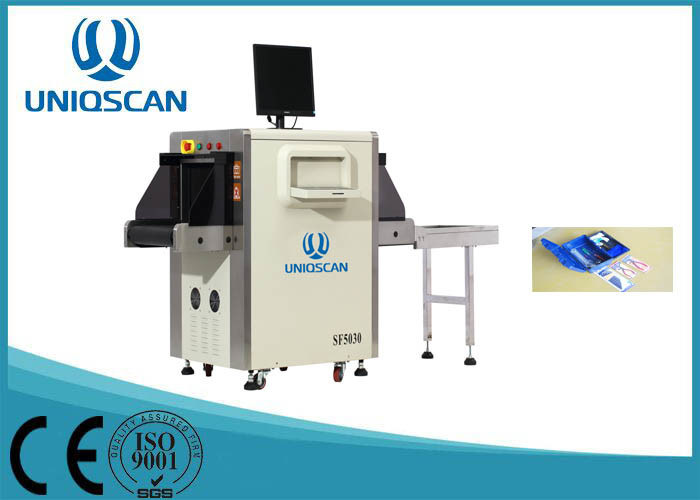

L-shaped array detector SF5030A Airport baggage scanner used for Metro
Technical Standards | Technical Parameters |
Tunnel size | 500(W)×300(H)mm |
Conveyor speed | 0.22m/s |
Load | 150 kg |
Resolution | ∮0.0787 mm |
Penetration | ≥43 mm steel plate |
Monitor | Samsung 19in LCD Monitor |
Storage |
500G hard drive to save any image in real time, can store more than 100,000 and |
Noise | < 55dB(A) |
Operating system | windowsXP |
Film Safety | Safety to the ISO1600 |
Leaking radiation dose rate |
Away from any device outer surface of 5cm, the ray irradiation leak rate should be < 0.01µGy/H |
