| Product Name: | UUVS/UVIS | Max Image Resolution: | 6000×12000 Px |
|---|---|---|---|
| Memory:: | 2G( Optional 4G) | Max Loop Duration: | 9-10 Seconds |
| Scanning Device Weight: | 24KG | Communication Interface:: | RS232/RS422 |
| Operating Temperature:: | 10℃ To +75℃ | Operating Temperature Range:: | -40 Degree To +70 Degree |
| High Light: | under vehicle search mirror,under vehicle inspection mirror |
||

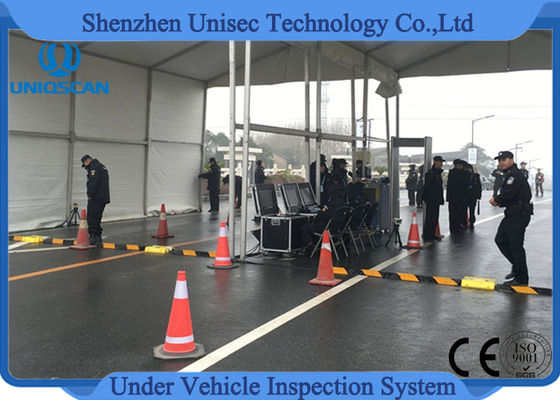

ISO9001 Portable Under Vehicle Surveillance System RS232 / RS422 Communication interface
Our portable under vehicle surveillance system solutions are designed to scan, monitor, and digitally record crisp, clear digital video images of the entire width of a vehicles undersidesall with one permanent or portable system. Careful integration of components makes the portable under vehicle surveillance system a cost-effective and convenient solution for checking passenger vehicles, vans, buses, semi tractors, trucks and trailers, and more. Its an ideal solution for governmental,military, corporate, and transportation facilitieswherever
complete vehicle monitoring is required.
The portable under vehicle surveillance system UV300M is the embedded solution for the fully automatic identification of threats or modifications to a vehicles undercarriage. Vehicles drive over the environmentally sealed, dual view scanners while our rugged portable under vehicle surveillance system systems scan and compile two high-resolution images of a vehicles undercarriage to create the vehicles fingerprint.Two views make it easier to see any threatening objects that may be hidden on top of an axel or crossbeam. An overview/driver camera captures the normal view of car/driver and displays this on the high-resolution touch screen.
Features:
1. Automatic digital line scan camera, with high-resolution and clarity of the image.
2. The complete image of under vehicle scanning, without any omissions, and the image is clear,
3. complete, no distortion,can be clearly observed that the object is not less than 2mm in diameter.
4. Preparation of inspection processes to meet a variety of on-site needs.
5. Multiple scene image monitoring, recording function.
6. Multi-language user interface design.
7. Strong scalability to easily achieve a variety of system linkage control.
8. ALPR (Automatic Licence Plate Recognition) (Optional)
9. Multiple devices networked control functions (Optional)
What's our portable under vehicle surveillance system general specifications?
| Scanning mode | full automatic, the external trigger scanning way | |
| Vertical resolution of the image: | 5000×2048 pixels | |
| Check the width viewing angle: | >4 meters | |
| Speed of vehicle: | < 30km/h with ALPR (Automatic Licence Plate Recognition) | |
| >70km/h without ALPR (Automatic Licence Plate Recognition) | ||
| Auxiliary light: | 50W | |
| Effective Field of View(FOV): | >170° | |
| Weight capacity: | >30T | |
| Water-proof grade: | IP68 | |
| Scanning device weight: | 28KG | |
| Scanning device volume: | 450mm×400mm×88mm | |
| Communication interface: | RS232/RS422 | |
| Operating Temperature: | -10℃ to 55℃ | |
| Storage temperature: | -40℃ to +75℃ |
What's our under vehicle surveillance system imaging specifications?
| Image Resolution for private cars | 6000×10000 px |
| Max Image Resolution | 6000×12000 px |
| Image Format Type | JPEG, BMP |
| Scanning Time for private cars | 3 seconds |
| Scanning Time for private long vehicles | 5 seconds |
| Inspection Time (Seconds) | 8 seconds |
| Min Foreign Object Detection Size | 0.2 × 0.2 cm (L×W) |
| Ability to cater for Bad driver behaviour | the wheel shouldn't roll on the scanner |
| Max Loop Duration | 9-10 seconds |
| Check the width viewing angle | >4 meters |
What's our portable under vehicle surveillance system computer specifications?
| Brand | Grantech (UFO6377H-SP1-953) |
| CPU | Intel Core (TM) 2 Duo CPU, P8600 2.4GHz or higher |
| Memory | 2G (optional 4G) |
| Graphics | Inter(R) Gen 5.0 Integrated Graphics Engine |
| Hard Disk | SATA2 Hard Disk 500G, Dual LAN (At least one Intel Gigabit), USB2.0 ( Up to 4 pieces) |
| Monitor | 22 inch LCD, resolution up to 1920*1080 |
| Power Supply | 24VDC, 3A |
| Date cable length | 10m (optinal) |
| Operating voltage | 110-240V AC, 50-60HZ |
What's our under vehicle surveillance system international compliance?
| International | ISO19001 ; ISO14001 ; OHSMS18001,CE, USA FDA |
How does our portable under vehicle surveillance system works?
What's our portable under vehicle surveillance system main functions?
portable under vehicle surveillance system Magnifying Glass
