Product Details:
Payment & Shipping Terms:
|
| Control System: | Integrated Electro- Hydraulic | Passing Pressure: | ≤80- 120 Tons Container Trucks |
|---|---|---|---|
| Voltage：: | AC220V 50Hz Integrated | Rise Time: | ≤3-4S （adjustable） |
| Fall Time: | ≤3-4S （adjustable） | Material: | 304 Stainless Steel |
| Highlight: | traffic control bollards,vehicle barrier bollards |
||

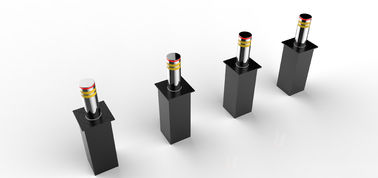

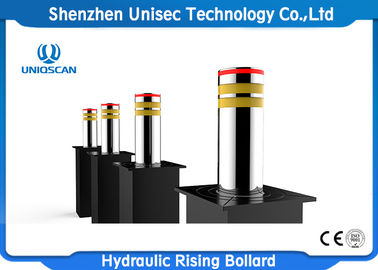

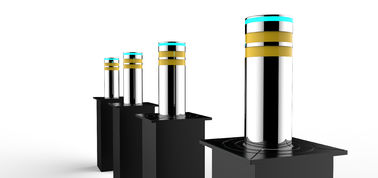

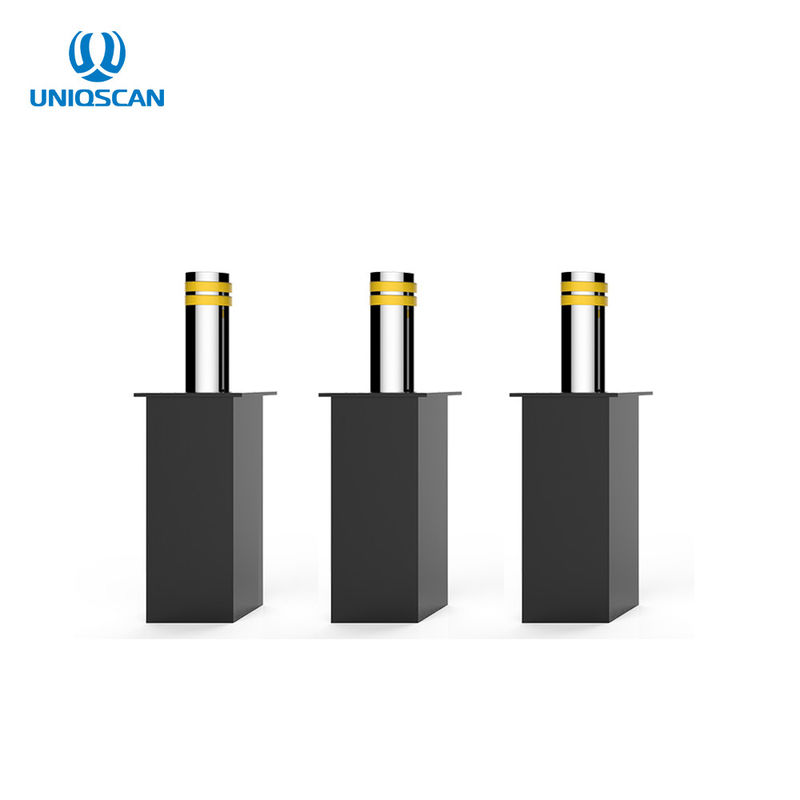

Integrated Electro Hydralic Rising Bollard
Technical Parameter
| Control System | Integrated Electro- Hydraulic |
| Passing pressure: | ≤80- 120 tons container trucks |
| Voltage: | AC220V 50Hz Integrated |
| System Dynamic power | 350W Integrated |
| Rise time : |
≤3-4S (adjustable) (adjustable) |
| fall time : |
≤3-4S (adjustable)
|
| Material: | 304 stainless steel |
| Rising height: | 600mm |
| Diameter | 168mm,219mm,273mm (can be customized) |
| External housing size |
430*430*1130mm/500*500*900mm
|
| Thickness of bollard | 6mm,8mm,10mm.12mm,15mm,30mm (optional) |
| Working Temperature : | -35℃~75℃(suitable) |
| Storage Environment : | 10℃~65℃, Waterproof and moisture-proof |
|
Solenoid valve voltage :
|
24V |
| Remote control distance | Approx .50m-100m |
| Running noise | ≤60 db |
| Waterproof: | IP68, double sealed |
| Weight: | 200 KG approx. |
Main Function:
l Structure :With load-bearing steel beam column, anti-collision steel beam column, 4 navigation rod
l Integrated electrical mechanism :stroke 600mm,Cylinder outer diameter 60mm,Rod diameter:16mm.
l 6k Mirror cylinder
l Colorful With LED (Acrylic light circle)
l Reflective sticker :2 strips
l Gang-control interface
l Can be manually fall down if power cut.
l Available to reverse operation during rising or falling down
l Hydraulic drive comes with hydraulic lock
l PLC programming command control system
l LCD display ,Both Chinese and English menu.
l PLC built-in encryption system
