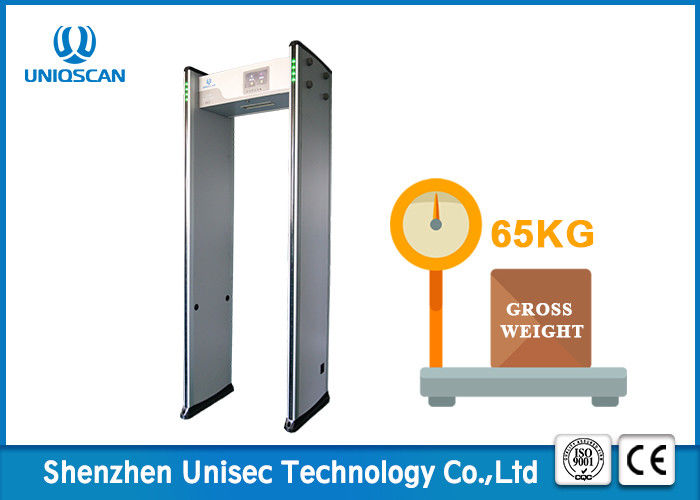

High Sensitvity Security Walk Through Gate Fire Proof Material For Supermaket

33 Zones High Sensitvity Walk Through Metal Detector with CCTV Camera and DVR for Supermaket.

WALK THROUGH METAL DETECTOR

MODEL:UB800 CCTV

33 zones
Parameters
Power Supply:AC85V-264V
Working temperature:-20ºC--+50ºC
Working Frequency :4KHZ-8KHZ
Standard External size: 2200mm(H)X800mm(W)X580mm(D)
Standard Internal size: 2010mm(H)X700mm(W)X500mm(D)
Package size for door panels: 2280*560*180mm *1ctn
Package size for control unit: 760*390*270 mm*1ctn
Gross weight: 65KG

Characteristic & FEATURES

• 33 mutual over-lapping detecting zones, Simultaneous alarm from multi- zones;
• Sensitivity adjustable: Each zone has 999 sensitivity level
• 7 inch color LCD screen
• Infrared remote control
• Using high density fireproof material
• 5 digits counter. Automatically count passengers and alarm times
• High sensitivity: Ferrous/ non-ferrous /Alloy can be detected
• 15 preset programs for security applications
• Anti-interference function, using advanced interactive transmitting and receiving to avoid interference.
• 100 frequencies for option. To work with neighbouring gates at 40cm
• Sound & LED alarm: Two Sides LED indicator easily show where the metal is.
• Detecting speed: up to 100 passenger/ min.
• Alarm volume range from level 1 to 9
• Alarm tones: Change from 0 to 9 (10 different tones for choosing)
• Password protection, only the authorized person can operate.
• Easy assembly: designed with only 2 pieces cables and 8 screws, Simply-to-follow instruction. Modularization design,easy for maintenance and replacement.
• Harmless to human body: is harmless with heart pacemaker, pregnant women, magnetic floppy, recording tapes, etc.
• Sensitivity Test piece: One yuan Coin, omnidirectional detection
• 4 hours backup battery (Option)
