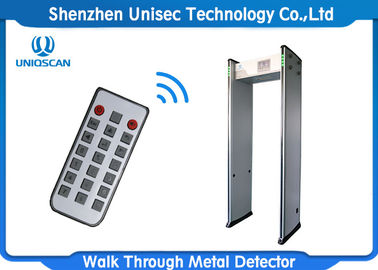

High Sensitivity Walk Through Metal Detector 33 / 45 Zones With Network Function

High Sensitivity 33/45 Zones Door Frame Security Walk Through Metal Detector with Network Function

33 zones

Parameters

Power Supply:AC85V-264V

Working temperature:-20℃--+50℃

Working Frequency :4KHZ—8KHZ

Standard External size: 2200mm(H)X800mm(W)X580mm(D)

Standard Internal size: 2010mm(H)X700mm(W)X500mm(D)

Package size for door Panel Size:2290X560X190 mm*1ctn

Package size for control unit: 760X380X260 mm*1ctn

Gross weight: 70KG

Characteristic & Function

Ø Eight mutual over-lapping detecting zones,

Ø Simultaneous alarm from multi- zones;

• Sensitivity adjustable: Each zone has 256 sensitivity level,
• 7 inch LCD screen
• Infrared remote control
• Sound & LED alarm: Both Side LED indicator ,

Easily show where the metal is.

• Automatically count passengers and alarm times
• Alarm strength indicator on control panel
• Password protection, only the authorized person can operate.
• Easy assembly: designed with only 2 pieces cables and 8 screws, simply-to-follow instruction.
• Harmless to human body: is harmless with heart pacemaker, pregnant women, magnetic floppy, recording tapes, etc.
• Using high density fireproof material
• Program Self-diagnostic when power on, no need initial or periodic calibration
• Modularization design, easy for maintenance and replacement.
• Sensitivity Test piece: One yuan Coin, omnidirectional detection
• 4-8 hours backup battery (Option)
• Network support
• Can be customized 6 and 33 zones

Application

Exhibition center, Electronic Factory, Bank, Prison, Government office, Hotel etc
